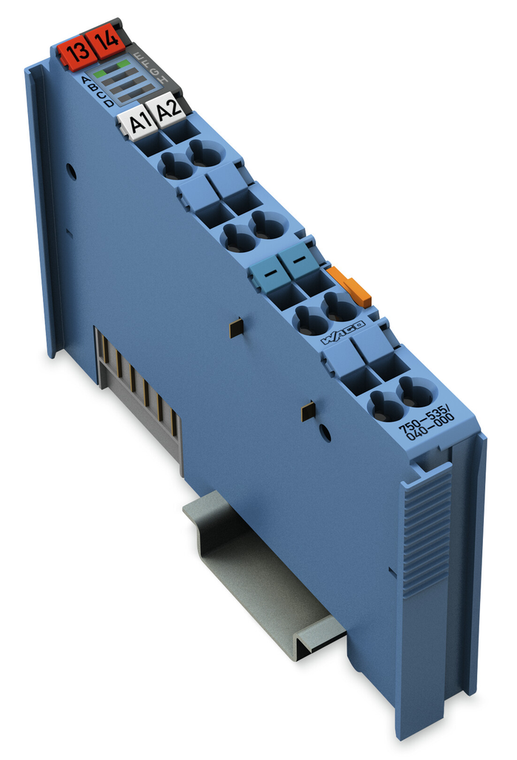

WAGO 750-535/040-000

SKU:

750-535/040-000

UPC:

MPN:

750-535/040-000

Condition:

New

actuator connection:

2 x (2-wire)

color:

Blue

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

0.0416666666666667

depth:

67.8 mm / 2.669 inch

depth from upper edge of din rail:

60.6 mm / 2.386 inch

dielectric strength:

510 VAC/775 VDC: per EN 60870-2-1

emc emission of interference:

Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3

emc immunity to interference:

Per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994

ex guideline:

EN/IEC 60079-0, -7, -11

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.25 2.5 mm / 24 14 AWG

fire load:

0.634 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

internal resistance ri:

285

intrinsic safety ex i:

Yes

isolation:

300 VAC system/field

load type:

Resistive, inductive, lamp load

marking:

ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc: II (1) D [Ex ia Da] IIIC: I (M1) [Ex ia Ma] I

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

The digital output module must only be operated via 24 VDC Ex i XTR power supply (750-606/040-000)!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 XTR manuals!

number of digital outputs:

2

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)

output characteristic:

High-side switching

output internal data width max:

2 bits

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

7 mA

power consumption field supply module with no external load:

8.5 mA

power consumption pmax:

2.1 W (at 40 mA output current)

power loss pl:

1.1 W (at 40 mA output current)

protection type:

IP20

rated surge voltage:

1 kV: Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11)

reactances ex ia i:

Lo = 30 mH: Co = 3.85 F

reactances ex ia iia:

Lo = 21 mH: Co = 2.37 F

reactances ex ia iib:

Lo = 12 mH: Co = 0.72 F

reactances ex ia iic:

Lo = 1.1 mH: Co = 0.092 F

reactances note:

Reactances without accounting for the concurrence of L and C

relative humidity with condensation:

Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

relative humidity without condensation:

0.95

safety relevant data circuit:

Uo = 26.8 V: Io = 99.91 mA: Po = 669.43 mW: Linear characteristic curve

shock resistance:

Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 61373

signal type:

Voltage

solid conductor:

0.25 2.5 mm / 24 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC: (Ex i XTR power supply: UO = max. 26.8 V): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 85 C

switching frequency max:

1 kHz

total number of channels module:

2

vibration resistance:

Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3

voltage signal type:

24 VDC

weight:

47.500 g

width:

12 mm / 0.472 inch
