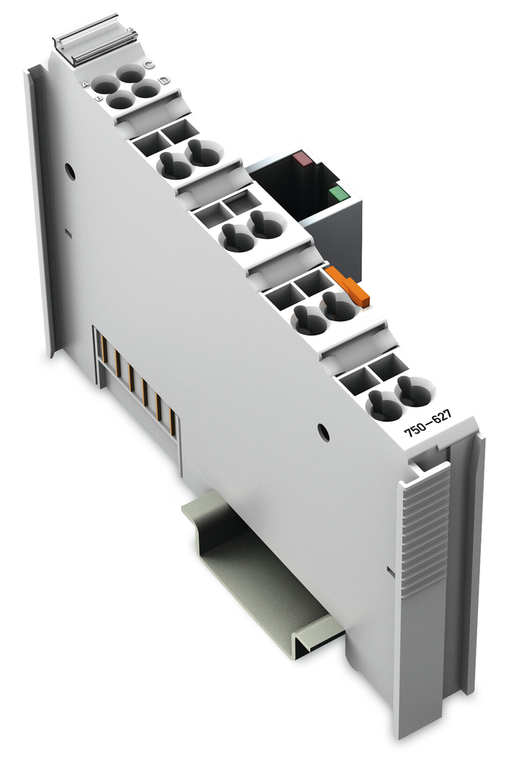

WAGO 750-627

(No reviews yet) Write a Review

Write a Review

WAGO 750-627

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

750-627

UPC:

MPN:

750-627

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology communication fieldbus:

Local data bus: 1 x RJ-45

country of origin sales organisation germany:

DE

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

device specific:

Number of coupler modules: up to 10: Distance (max.): 5 m (10 m see manual): (end/coupler modules or coupler/coupler modules)

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fire load:

0.085 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

500 V system/field

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

70 mA

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

transmission medium:

Shielded copper cable (ETHERNET patch cable): 4 x 2 x 0.25 mm, twisted pair, double shielding STP (Shielded Twisted-Pair)

vibration resistance:

4g per IEC 60068-2-6

weight:

45.200 g

width:

24 mm / 0.945 inch
