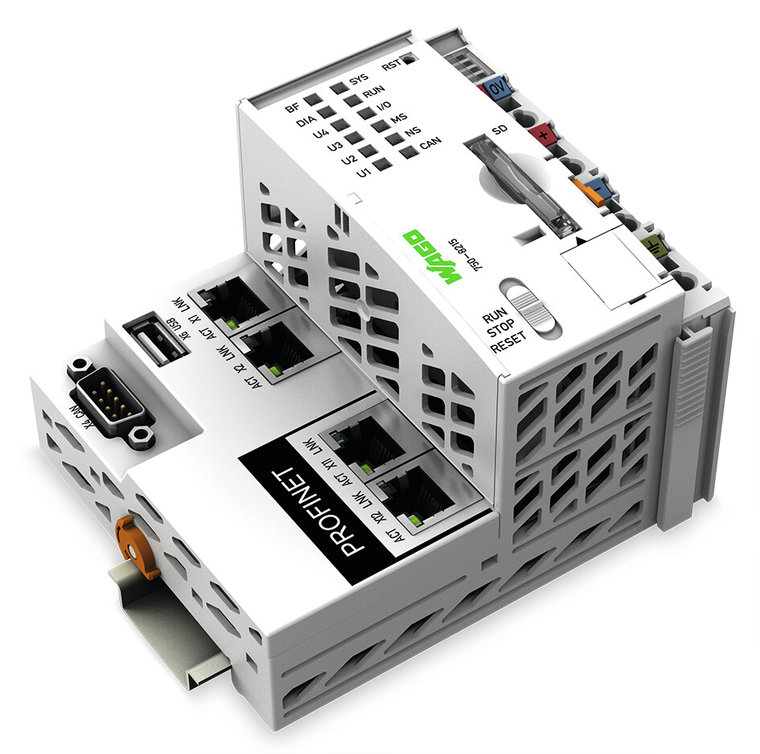

Controller PFC200; 2nd Generation; 4 x ETHERNET, CAN, CANopen, USB-A.
The WAGO PFC200 series PLC CPU unit features an ARM Cortex-A8 1GHz processor with 512MB RAM and 4GB internal flash memory. It supports up to 250 connections per node and 64 field devices, with communication capabilities including Modbus TCP, Ethernet/IP, EtherCAT, CANopen, and PROFINET RT. The unit operates on a supply voltage of 18-31.2Vdc (24Vdc nominal) and includes 4 RJ45 connectors, a 9-pin D-sub connector, and a CAGE CLAMP 2-pin system connector. It is designed for DIN-35 rail mounting, measures 112mm in width, and includes an SD/SDHC card slot supporting up to 32GB. The device is rated IP20 and suitable for ambient temperatures from 0°C to +55°C.
- baud rate:
- ETHERNET: 10/100 Mbit/s
- baud rate communication fieldbus 1:
- 10/100 Mbit/s
- color:
- Light gray
- communication:
- PROFINET RT || Modbus (TCP, UDP) || ETHERNET || CANopen || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || MQTT || EtherCAT Master, requires an additional license
- configuration options:
- e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME Library || CODESYS Library
- connection technology communication fieldbus:
- PROFINET: 2 x RJ-45: CANopen: 1 x D-sub 9 plug: Modbus TCP/UDP: 2 x RJ-45
- connection technology device configuration:
- 1 x Male connector: 4-pole
- connection technology field supply:
- 6 x CAGE CLAMP
- connection technology system supply:
- 2 x CAGE CLAMP
- connection type 1:
- System/field supply
- country of origin sales organisation germany:
- DE
- cpu:
- Cortex A8: 1 GHz
- current carrying capacity power jumper contacts:
- 0.416666666666667
- data memory:
- 128 MB
- depth:
- 71.9 mm / 2.831 inch
- depth from upper edge of din rail:
- 64.7 mm / 2.547 inch
- device specific:
- PROFINET IO features: PROFINET IO V2.3: Media redundancy (MRP): Shared device
- emc emission of interference:
- Per EN 61000-6-4, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- ethernet protocols:
- DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 2.696 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- indicators:
- Red/green/orange LED (SYS, RUN, I/O, U1 U4): Status system, program, local bus, status programmable by user (can be used via CODESYS library): Green LED (A, B): System power supply status, field supply
- input and output can process image max:
- 2000 Worte/2000 Worte
- input and output internal process image max:
- 1000 Worte/1000 Worte
- input and output modbus process image max:
- e!RUNTIME: 32000 Worte/32000 Worte
- input current typ at nominal load 24 v:
- 550 mA
- internal memory flash:
- 4096 MB
- isolation:
- 500 V system/field
- main memory ram:
- 512 MB
- memory card slot:
- Push-push mechanism: Cover lid (sealable)
- memory card type:
- SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card)
- mounting position:
- Any
- mounting type:
- DIN-35 rail
- non volatile hardware memory:
- 128 kB
- non volatile software memory:
- 128 kB
- number of modules per node max:
- 250
- number of modules without a bus extension max:
- 64
- number of outgoing power jumper contacts:
- 3
- operating altitude:
- Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
- operating system:
- Real-time Linux (with RT-Preempt patch)
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- program memory:
- 32 MB
- programming environment:
- e!COCKPIT (based on CODESYS V3)
- programming languages per iec 61131 3:
- Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts
- supply voltage system:
- 24 VDC (-25 +30 %): via pluggable connector (CAGE CLAMP connection)
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -25 85 C
- total current system supply:
- 1700 mA
- transmission medium communication fieldbus:
- ETHERNET: Twisted Pair S-UTP: 100 : Cat. 5: 100 m maximum cable length
- vibration resistance:
- 4g per IEC 60068-2-6
- visualization:
- Web Visu
- weight:
- 255.600 g
- width:
- 112 mm / 4.409 inch
