Description
2-channel digital output; AC 250 V; 2.0 A; 2 make contact
View AllClose
Technical Data
- Number of digital outputs: 2
- Total number of channels (module): 2
- Actuator connection: 2 x (2-conductor, 3 Leiter)
- Output switching design: relay
- Output characteristic: non-floating
- Switching frequency max.: 0.5 Hz; Nennlast
- Load type of the switching frequency: Nennlast
- Switching voltage (max.): AC 250 V, DC 30 V
- Switching current max.: 2 A
- Switching voltage (min.): 5 V
- Switching current (min.): 10 mA
- Switching power: 500 VA / 60 W (purely resistive load); cos max. = 0.4; L/R max. = 7 ms
- Pull-in time (max.): 10 ms
- Drop-out time (max.): 10 ms
- Bounce time (typ.): 1.2 ms
- Schaltspiele elektrisch min. (bei max. ohmscher Last): 3 x 10<sup>5</sup>
- Schaltspiele mechanisch min. (bei max. ohmscher Last): 20 x 10<sup>6</sup>
- Max output data width (internal): 2 bit
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 100 mA
- Field supply voltage: AC 250 V; via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Isolation: 1500 V system/field
- Indicators: LED (A, C) green: Status relay 1, relay 2
- Number of incoming power jumper contacts: 3
- Number of outgoing power jumper contacts: 3
- Current carrying capacity of the power jumper contacts: 10 A
Connection Data
- Connection technology: In-/Outputs: 8 x CAGE CLAMP<sup></sup>
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height: 69.8 mm / 2.748 inch
- Height from upper-edge of DIN-35 rail: 62.6 mm / 2.465 inch
- Depth: 100 mm / 3.937 inch
Mechanical Data
- Type of mounting: DIN-35 rail
- Pluggable connector: yes
Material Data
- Color: light gray
- Contact material: Ag alloy
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 1.120 MJ
- Weight: 44.500 g
- Conformity marking: CE
Environmental Requirements
- Surrounding air (operating) temperature: 0 55 C
- Surrounding air (storage) temperature: -40 85 C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2, marine applications
- EMC emission of interference: acc. to EN 61000-6-4, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %: 10 ppm
- Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %: 25 ppm
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454429249
- Customs Tariff No.: 85371098990

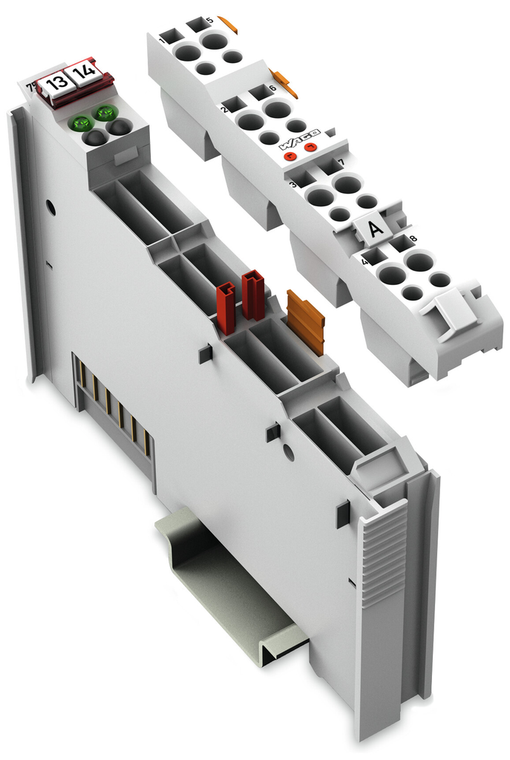

The WAGO 753 series pluggable AC digital relay output slice module features 2 relay outputs (2NO) with a capacity of 250Vac and 2A, and supports both 2-wire and 3-wire connections. It operates on a 5Vdc supply voltage provided by the system and utilizes spring CAGE CLAMP connections for secure wiring. Designed for DIN-35 rail mounting with a 12mm width, it is rated for ambient temperatures ranging from 0°C to +55°C and has an IP20 protection rating. This module is equivalent to the 753-512 model.
