Wago

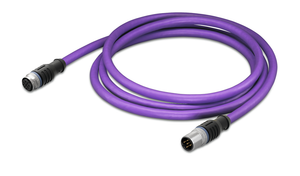

WAGO 756-1105/060-100

SKU:

756-1105/060-100

UPC:

MPN:

756-1105/060-100

Condition:

New

bending cycles:

1 Mio.

bending radius:

> 10 x cable (flexible use): > 5 x cable in drag chain (fixed installation)

cable connection direction to mating direction:

0

cable connection direction to mating direction 2:

0

cable length:

10 m

color:

Violet

communication fieldbus:

PROFIBUS

conductor design:

Bare copper wire (19 x 0.15 mm)

conductor insulation:

PE (halogen-free): Filler: PP yarn

conductor resistance:

Max. 55 /km: Loop resistance: max. 110 /km

connection type:

M12 socket - M12 plug

connector interface coding cable adapter 1 1:

B-coded

connector interface coding cable adapter 2 1:

B-coded

country of origin sales organisation germany:

DE

drag chain suitability:

Yes

fire load:

0.000 MJ

housing material:

TPU/TPU, black (~ RAL 9005)

insulation resistance:

> 2500 M/km

operating current:

0.166666666666667

operating voltage:

¤ 300 V

packaging type:

Box

pole no:

5

pollution degree 5:

3/2 per IEC 60664-1

protection type:

IP67

rated surge voltage:

2 kV

sheathed cable diameter:

7.3 7.9 mm

shield:

Shielding braid, (approx. 5.90 mm ), tinned CU-ETP1, coverage 85 % 5 %

surrounding air operating temperature dynamic:

-25 +60 C

surrounding air operating temperature static:

-50 +60 C

tightening torque:

1 Nm

type code:

LI02YS-(ST)CB11Y 1X(2X0.34SQMM)

weight:

739.000 g
