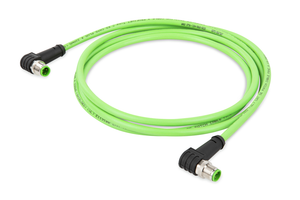

ETHERNET cable; M12D plug; angled; M12D plug; angled; 4-pole; Length: 5 m.
The WAGO component equivalent to 7561204060050 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- bending cycles:
- 3 Mio.
- bending radius:
- Single: 5 x cable diameter (min.): Multiple: 7.5 x cable diameter (min.)
- cable connection direction to mating direction:
- 90
- cable connection direction to mating direction 2:
- 90
- cable length:
- 5 m
- color:
- Green
- communication fieldbus:
- Ethernet
- communication fieldbus:
- PROFINET
- conductor design:
- Bare copper wire (7 x 0.25 mm)
- conductor insulation:
- PE (halogen-free)
- conductor resistance:
- < 57 /km
- connection type:
- M12 plug - M12 plug
- connector interface coding cable adapter 1 1:
- D-coded
- connector interface coding cable adapter 2 1:
- D-coded
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 5 x 108 /km
- operating current:
- 0.166666666666667
- operating voltage:
- 250 V
- packaging type:
- Box
- pole no:
- 4
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 2 kV
- sheathed cable diameter:
- 6.3 6.7 mm
- shield:
- Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 %
- surrounding air operating temperature dynamic:
- -40 +70 C
- surrounding air operating temperature static:
- -40 +70 C
- tightening torque:
- 1 Nm
- type code:
- 02YH(ST)C11Y 2x2x0.75/1.5-100 LI GN VZN FRNC, shielded
- weight:
- 350.000 g
