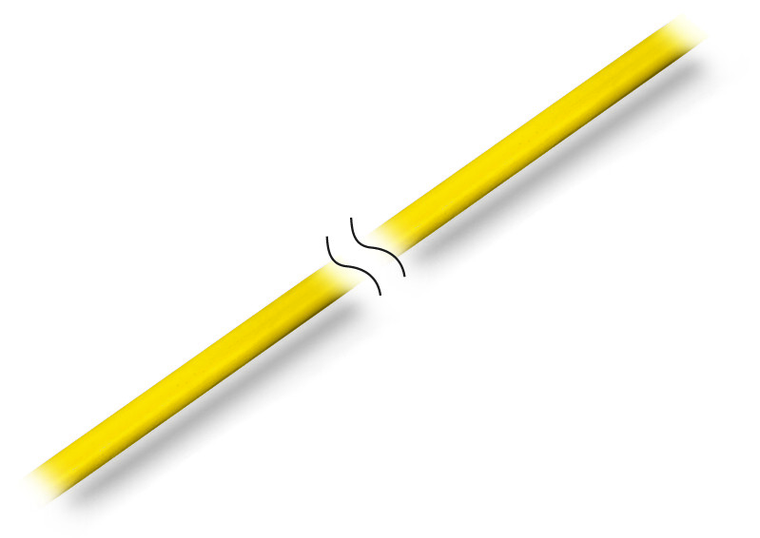

WAGO 756-1300/000-1000
Wago
System bus cable; 100 m.
The WAGO component equivalent to 75613000001000 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is designed to meet certain technical specifications and standards, ensuring compatibility and functionality within its intended use. It is part of WAGO's extensive product line, which includes various connectors, terminal blocks, and automation technology solutions, known for their reliability and efficiency in industrial and commercial settings.
- bending radius:
- 5 x cable diameter (min.)
- cable length:
- 100 m
- color:
- Yellow
- conductor design:
- Bare copper wire (26/7 AWG)
- conductor insulation:
- Zell-PE: Core : 1.0 mm (max.)
- conductor resistance:
- 145 /km
- connection type:
- Free end - Free end
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- insulation resistance:
- 5000 M
- material properties of the connections:
- Hexagon knurled nut: CuZn: Knurled nut surface: nickel-plated: Sealing ring: FPM (Viton)
- operating current:
- 0.166666666666667
- operating voltage:
- 125 V
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV per IEC 61076-2-101
- sheathed cable diameter:
- 6 mm
- shield:
- Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
- surrounding air temperature operation:
- -25 60 C
- type code:
- KS-02YS(ST+C)11Y 4x2xAWG26/7-100 , shielded
- weight:
- 9.999 g
- wire colors:
- White-blue, blue, white-orange, orange, white-green, green, white-brown, brown
