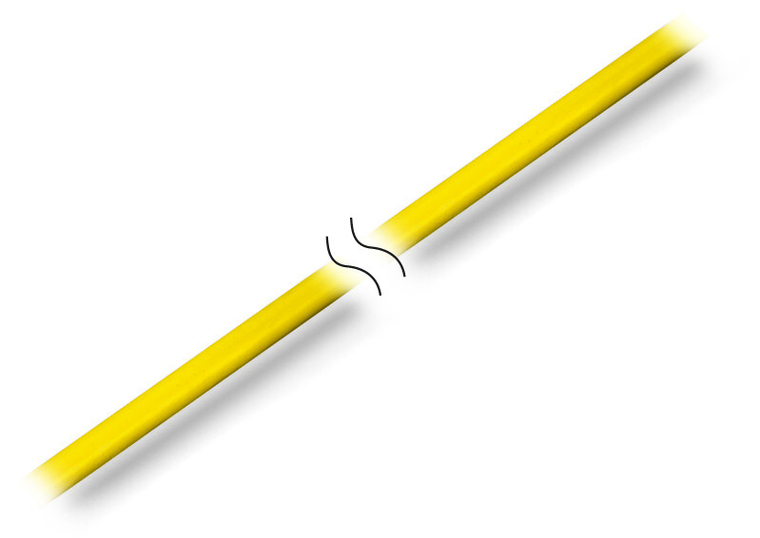

WAGO 756-1300/000-250
Wago
System bus cable; 5-pole; Length: 25 m.
The WAGO component equivalent to 7561300000250 is a specific part or module used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration within systems that require precise control and connectivity. This component is known for its durability, ease of installation, and compatibility with other WAGO products, making it a preferred choice for engineers and technicians in the field.
- bending radius:
- 5 x cable diameter (min.)
- cable length:
- 25 m
- color:
- Yellow
- conductor design:
- Bare copper wire (26/7 AWG)
- conductor insulation:
- Zell-PE: Core : 1.0 mm (max.)
- conductor resistance:
- 145 /km
- connection type:
- Free end - Free end
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- insulation resistance:
- 5000 M
- material properties of the connections:
- Hexagon knurled nut: CuZn: Knurled nut surface: nickel-plated: Sealing ring: FPM (Viton)
- operating current:
- 0.166666666666667
- operating voltage:
- 125 V
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV per IEC 61076-2-101
- sheathed cable diameter:
- 6 mm
- shield:
- Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 %
- surrounding air temperature operation:
- -25 60 C
- type code:
- KS-02YS(ST+C)11Y 4x2xAWG26/7-100 , shielded
- weight:
- 9.999 g
- wire colors:
- White-blue, blue, white-orange, orange, white-green, green, white-brown, brown
