WAGO 756-1405/060-100
Wago
$145.20

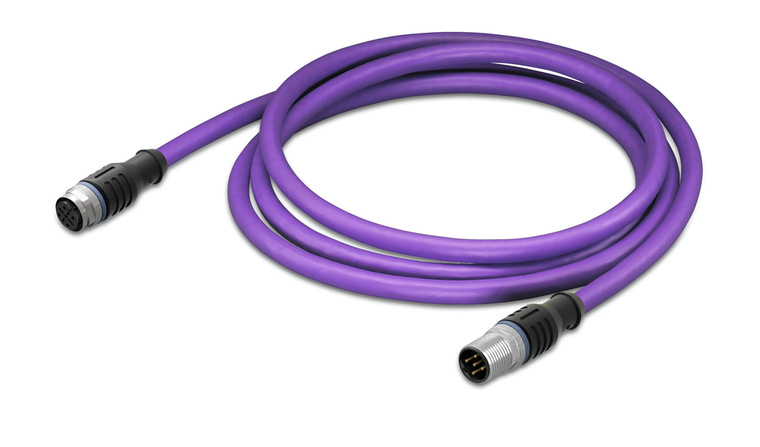

CANopen/DeviceNet cable; M12A socket; straight; M12A plug; straight; 5-pole; Length: 10 m.
The WAGO component equivalent to 7561405060100 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration with existing systems. This component is known for its durability, ease of installation, and compatibility with a wide range of devices, making it a popular choice among professionals in the field.
- bending cycles:
- 5 Mio.
- bending radius:
- 5 x cable diameter (min.)
- cable connection direction to mating direction:
- 0
- cable connection direction to mating direction 2:
- 0
- cable length:
- 10 m
- color:
- Violet
- communication fieldbus:
- CANopen
- communication fieldbus:
- DeviceNet
- conductor design:
- Bare copper wire (19 x 0.125 mm)
- conductor insulation:
- PE (halogen-free)
- conductor resistance:
- 57 /km (22 AWG) + 79 /km (24 AWG)
- connection type:
- M12 socket - M12 plug
- connector interface coding cable adapter 1 1:
- A-coded
- connector interface coding cable adapter 2 1:
- A-coded
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 2 x 108 /km
- operating current:
- 0.166666666666667
- operating voltage:
- ¤ 300 V
- packaging type:
- Box
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 2 kV
- sheathed cable diameter:
- 6.6 7.2 mm
- shield:
- Tinned copper braid, optical coverage approx. 85 %
- surrounding air operating temperature dynamic:
- -40 +80 C
- surrounding air operating temperature static:
- -40 +80 C
- tightening torque:
- 1 Nm
- type code:
- L-02YC11Y 2xAWG24 + 2xAWG22/1.4-120 VI FRNC, geschirmt
- weight:
- 663.000 g
