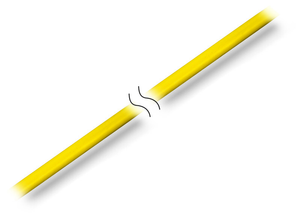

System bus/trailing cable; 25 m.
The WAGO component equivalent to 7561500000250 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a system. The exact specifications, features, and applications of this component would be detailed in its technical documentation, which is essential for users to understand its capabilities and integration requirements.
- bending cycles:
- 5 Mio.
- bending radius:
- 5 x cable diameter (min.)
- cable length:
- 25 m
- color:
- Yellow
- conductor design:
- Bare copper wire (AWG 26/19)
- conductor insulation:
- FEP: Core : 1.0 mm (max.)
- conductor resistance:
- 130 /km
- connection type:
- Free end - Free end
- contact resistance:
- 10 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- insulation resistance:
- 5000 M
- operating current:
- 0.166666666666667
- operating voltage:
- 125 V
- packaging type:
- Box
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3/2 per IEC 60664-1
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV per IEC 61076-2-101
- sheathed cable diameter:
- 6.8 mm
- shield:
- Tinned copper braid, optical coverage approx. 90 %
- surrounding air operating temperature dynamic:
- 0 +50 C
- surrounding air operating temperature static:
- -30 +50 C
- type code:
- KS-6Y3GC11Y 4x2xAWG26/19 shielded
- weight:
- 1415.000 g
- wire colors:
- Red, black, blue, brown, yellow, green, orange, gray
