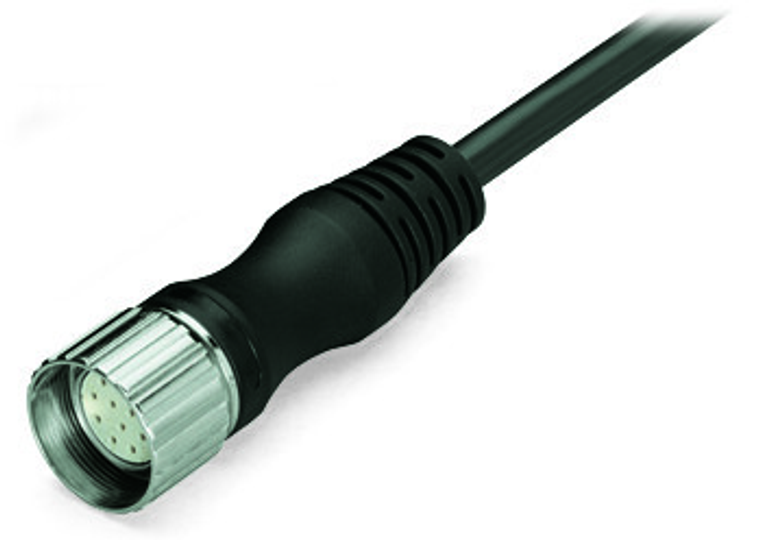

Connecting cable; straight; 12-pole; 15 m; fitted on one end (with free end); M23 socket, straight.
The WAGO component equivalent to 7563201120150 is a specific part or module used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration and functionality within systems. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 0
- cable length:
- 15 m
- color:
- Black
- connection type:
- M23 socket - Free end
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- operating current:
- 0.333333333333333
- operating voltage:
- ¤ 300 V
- packaging type:
- Box
- pole no:
- 12
- protection type:
- IP67
- rated surge voltage:
- 2.0 kV rms
- sheathed cable diameter:
- 9 9.6 mm
- surrounding air operating temperature dynamic:
- -25 +80 C
- surrounding air operating temperature static:
- -40 +80 C
- weight:
- 1570.000 g
