WAGO 756-3504/050-020
Wago
$84.86

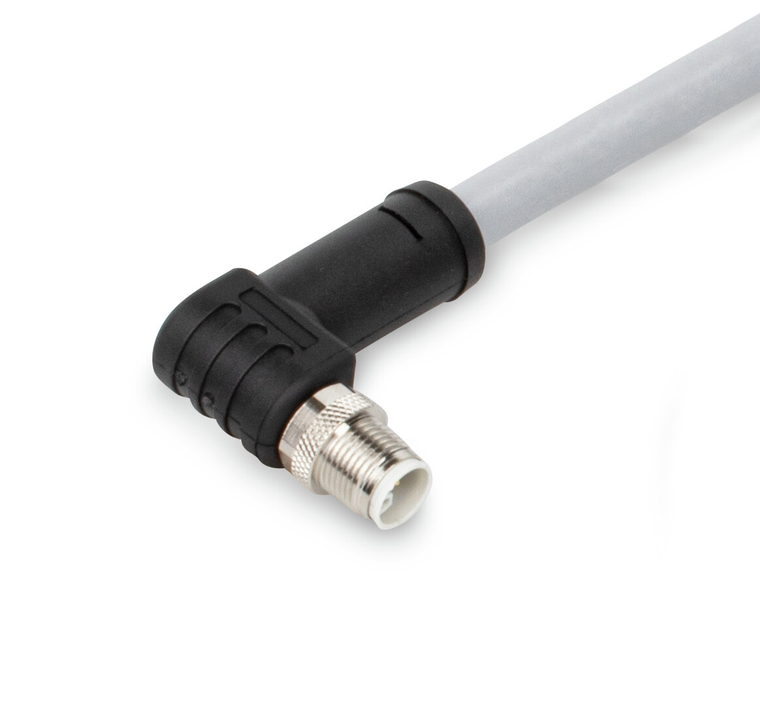

Power cable; M12L plug; angled; 5-pole; Length: 2 m.
The WAGO component equivalent to 7563504050020 is a specific part used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration with existing systems. This component is known for its durability, precision, and compatibility with a wide range of devices, making it a preferred choice for professionals in the field.
- bending cycles:
- 10 Mio.
- bending radius:
- Fixed: >4x: Flexible: >7.5x
- cable connection direction to mating direction:
- 0
- cable length:
- 2 m
- conductor design:
- Bare copper wire (84 x 0.15 mm)
- conductor insulation:
- PP9Y (halogen-free)
- conductor resistance:
- 13,7 /km
- connection type:
- M12 plug - Free end
- connector interface coding cable adapter 1 1:
- L-coded
- contact resistance:
- 5 m
- country of origin sales organisation germany:
- DE
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- housing material:
- TPU/TPU, black (~ RAL 9005)
- insulation resistance:
- 1000 M
- operating current:
- 16 A
- operating voltage:
- 63 VDC per IEC 60664-1
- packaging type:
- Not packed
- plc manufacturer:
- WAGO
- pole no:
- 5
- pollution degree 5:
- 3 per IEC 60664-1
- protection type:
- IP68
- rated surge voltage:
- 1.5 kV per IEC 61076-2-111
- sheathed cable color:
- Gray
- sheathed cable diameter:
- 9.6 10.2 mm
- surrounding air operating temperature dynamic:
- -30 +90 C
- surrounding air operating temperature static:
- -40 +90 C
- surrounding air temperature operation:
- -40 90 C (UL max. +80 C)
- tightening torque:
- 1 Nm
- type code:
- LiF9YH-11Y-0B 5x1.5mm
- weight:
- 300.000 g
