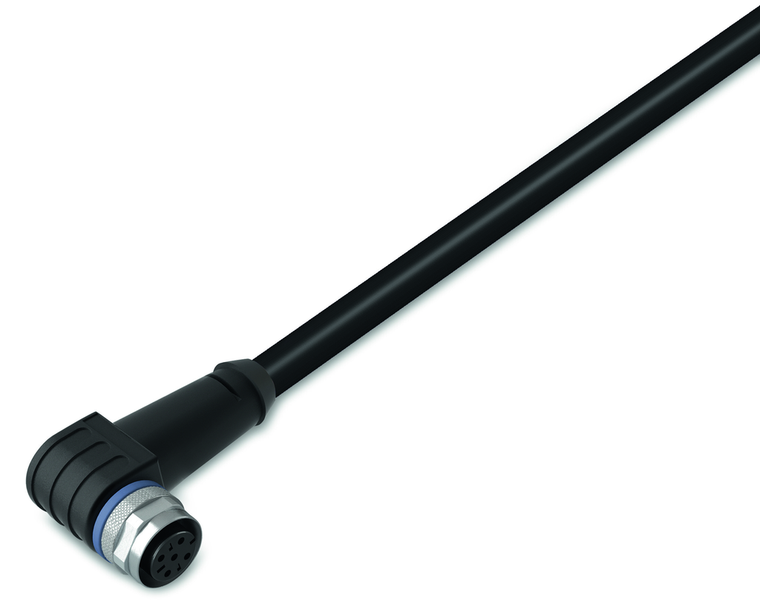

Sensor/actuator cable; fitted on one end (with free end); 5-pole; M12 socket, angled; one free cable end; 10 m.
The WAGO component equivalent to 7565302060100 is a specific part or module used in various applications, likely within the realm of industrial automation or electrical engineering. This component is designed to meet certain technical specifications and standards, ensuring compatibility and functionality within systems that require precise and reliable performance. It is essential for users to verify the exact requirements and compatibility of this component with their existing systems to ensure optimal operation and integration.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable length:
- 10 m
- connection point shielded:
- Yes
- connection type:
- M12 socket - Free end
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 5
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.3 6.7 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 620.000 g
