Wago

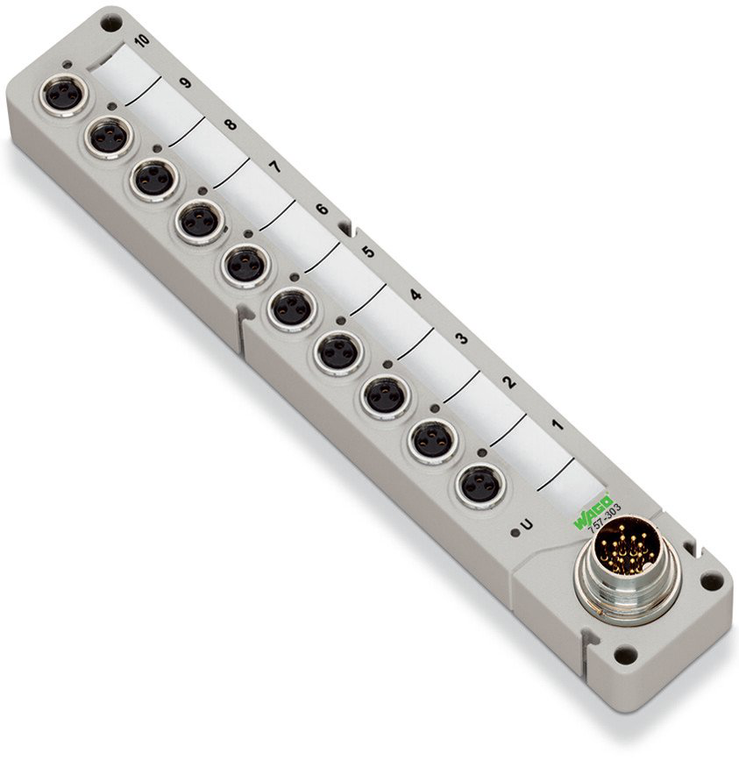

WAGO 757-303

SKU:

757-303

UPC:

MPN:

757-303

Condition:

New

Availability:

In our warehouse: 3

connection technology inputs outputs:

10 x M8 socket: 3-pole

connection technology trunk cable:

1 x M16 plug: 14-pole

contact resistance max:

0.01

country of origin sales organisation germany:

DE

current carrying capacity signal connections:

0.0833333333333333

current carrying capacity supply connections:

0.25

depth:

175 mm / 6.89 inch

encapsulation:

Fully encapsulated with conformal coating (UL 94 V0)

halogen free:

Yes

height:

26 mm / 1.024 inch

housing material:

PA 66 (UL 94 V0): RAL 7035: silicon and halogen free

indicators:

LED yellow: Signal status (1 x per contact): LED (U) green: Sensor/actuator box status

insulation resistance:

1000 M

material properties of the connections:

Contact: CuSn, nickel base-coat plating and 0.8 m gold-plated: Threaded bush: die-cast Zn, nickel-plated: Seal: Viton: 50 mating cycles

mounting type:

Screw mount

note on protection type:

Per EN 60529 (NEMA 6 & 6P) in the fully locked position with its plugs or protective caps

packaging type:

Box

pollution degree 5:

3 per VDE 0110

protection type:

IP67

rated value of electrical isolation:

500 V

shock resistance:

Per IEC 60068-2-27

signal characteristic:

PNP

supply voltage:

10 30 VDC: Rated voltage: 32 V ~ rms

surrounding air temperature operation:

-25 80 C

vibration resistance:

Per IEC 60068-2-6

width:

30 mm / 1.181 inch
