Wago

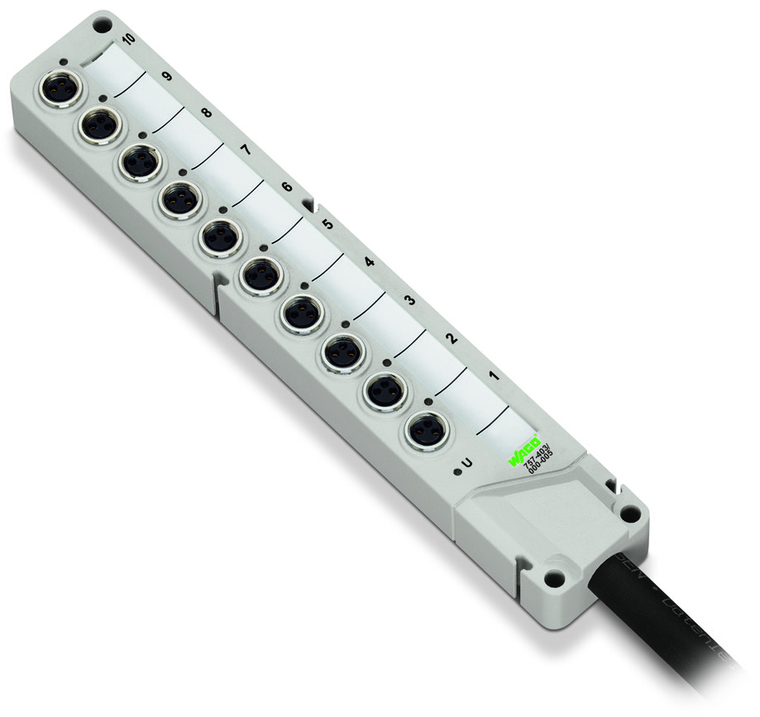

WAGO 757-403/000-005

SKU:

757-403/000-005

UPC:

MPN:

757-403/000-005

Condition:

New

Availability:

In our warehouse: 4

bending radius:

10 x cable diameter (min.) for flexible application

cable design:

Wire cross-section: 0.34 mm: Wire cross-section 2: 0.75 mm

connection technology inputs outputs:

10 x M8 socket: 3-pole

connection technology trunk cable:

1 x Fixed connecting cable

contact resistance max:

0.01

country of origin sales organisation germany:

DE

current carrying capacity signal connections:

0.0833333333333333

current carrying capacity supply connections:

0.25

depth:

175 mm / 6.89 inch

encapsulation:

Fully encapsulated with conformal coating (UL 94 V0)

halogen free:

Yes

height:

20 mm / 0.787 inch

housing material:

PA 66 (UL 94 V0): RAL 7035: silicon and halogen free

indicators:

LED yellow: Signal status (1 x per contact): LED (U) green: Sensor/actuator box status

insulation resistance:

1000 M

length of connecting cable:

5 m

material properties of the connections:

Contact: CuSn, nickel base-coat plating and 0.8 m gold-plated: Threaded bush: die-cast Zn, nickel-plated: Seal: Viton: 50 mating cycles

mounting type:

Screw mount

note on protection type:

72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps

packaging type:

Box

pollution degree 5:

3 per VDE 0110

protection type:

IP68

rated value of electrical isolation:

500 V

sheath material:

PUR

sheathed cable color:

Black

sheathed cable diameter:

7.6 mm

shock resistance:

Per IEC 60068-2-27

signal characteristic:

PNP

strip length:

100 mm / 3.94 inch

supply voltage:

10 30 VDC: Rated voltage: 32 V ~ rms

surrounding air operating temperature dynamic:

-5 +80 C

surrounding air operating temperature static:

-40 +80 C

surrounding air temperature operation:

-25 80 C

vibration resistance:

Per IEC 60068-2-6

width:

30 mm / 1.181 inch

wire colors:

White, green, yellow, gray, pink, red, black, purple, gray/pink, red/blue, brown, blue
