WAGO 762-4101
Wago
$1,157.00
Standard Line; 4.3" (10.9 cm); 480 x 272 pixels; 2 x USB, 2 x ETHERNET; Web Panel.

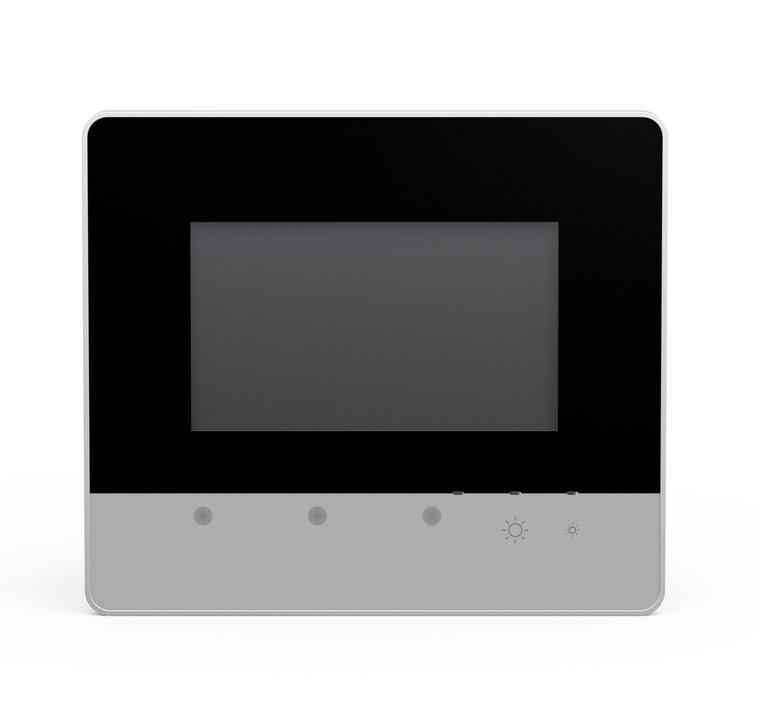

The HMI touchscreen panel with PIO1 hardware configuration (web panel) from WAGO (762 600 Standard line series) features a 4.3-inch display with 480x272 pixels and analog resistive sensing. It is powered by an ARM Cortex-A9 Quad-Core 1GHz processor, has 2GB RAM, 4GB internal flash memory, and supports Ethernet communication. The panel operates on a supply voltage of 18-30Vdc (24Vdc nominal) and includes 2 RJ45 connectors for fieldbus and 2 USB type-A host ports. It supports flush or VESA mounting, includes a microSD and SDHC card slot (up to 32GB), and is rated IP65 for ambient temperatures ranging from -20°C to +50°C. This model replaces obsolete components 762-1035 / 762-3000 and is equivalent to 7624101.
- brightness:
- 500 cd/m2
- communication:
- Web browser (HTML5)
- connection technology communication fieldbus:
- Web browser: 2 x RJ-45: 2 x USB 2.0 host (type A)
- connection technology supply:
- 1 x included 734-103 female connector featuring three CAGE CLAMP connections
- contrast ratio:
- 25.0006944444444
- controls:
- Resistive touch panel: 2 capacitive keys: proximity sensor
- country of origin sales organisation germany:
- DE
- depth:
- 58 mm / 2.283 inch
- display:
- Resistive touchscreen
- display colors:
- 16 million colors
- display diagonal:
- 10.9 cm (4.3 Inches)
- ethernet protocols:
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- fire load:
- 0.000 MJ
- graphics resolution:
- (480 x 272) px
- height:
- 135 mm / 5.315 inch
- indicators:
- Three-color LED (red, green, blue)
- internal memory flash:
- 4096 MB
- main memory ram:
- 2048 MB
- memory card type:
- MicroSD (max. 2 GB): microSDHC (max. 32 GB)
- mounting type:
- Clamping elements (included) or VESA mount (4 x M4x8)
- note on protection type:
- IP65 (front side): IP20 (rear side), per EN 60529
- operating power:
- 5.8 W, without USB load: 11.3 W, with USB load
- operating system:
- Real-time Linux (with RT-Preempt patch)
- packaging type:
- Box
- panel cutout w x h:
- (140 x 120) mm
- processor:
- ARM Cortex A9 Quadcore 1.0 GHz
- protection type:
- IP65
- relative humidity without condensation:
- 0.9
- supply voltage:
- 24 VDC, SELV (18 31.2 V): with reverse voltage protection
- surrounding air temperature operation:
- -20 55 C (when mounted vertically: 20 +50 C, other mounting positions)
- surrounding air temperature storage:
- -20 80 C
- viewing angle horizontal vertical:
- 80 / 80
- visualization:
- Webserver
- weight:
- 640.000 g
- width:
- 155 mm / 6.102 inch
