Wago

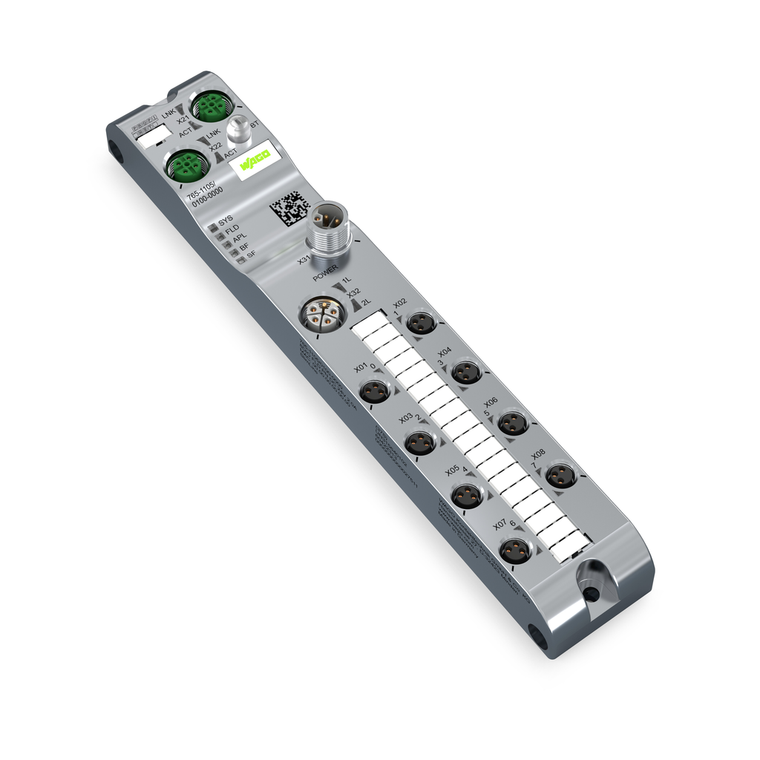

WAGO 765-1105/100-000

SKU:

765-1105/100-000

UPC:

MPN:

765-1105/100-000

Condition:

New

autonegotiation autocrossover:

Yes

communication:

PROFINET || PROFINET IO Device: 2-port switch, LLDP, MRP, SNMP

conformity marking:

CE

connection technology communication fieldbus:

2 x D-coded M12: 4-pole

connection technology inputs outputs:

8 x M8: 3-pole

connection technology supply:

2 x L-coded M12: 5-pole

country of origin sales organisation germany:

DE

depth:

210 mm / 8.268 inch

device functions:

Bluetooth || OPC UA Server

diagnostics:

Undervoltage: overcurrent: overload: overtemperature

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

height:

30 mm / 1.181 inch

input characteristic:

High-side switching || Type 3, per IEC 61131-2

input filter:

0.2 20 ms

interface standard:

10BASE-T/100BASE-TX: potential-free

number of digital inputs:

8

number of digital outputs:

8

operating altitude:

0 2000 m

output current per channel:

2 A (typ.) for DO

overvoltage category:

II (EN 60664-1)

packaging type:

Box

parameters:

Input filter || Output current || Temperature

pollution degree 5:

3 per EN 60664-1

power consumption max:

16000 mA

power consumption note:

Per supply line: overload- and short-circuit-protected

profinet io properties:

PROFINET IO device: 2-port switch, LLDP, MRP, SNMP

protection class:

III per EN 61140, IEC 61140, VDE 0140-1

protection type:

IP67

relative humidity without condensation:

0.95

reverse voltage protection:

Yes

shock resistance:

Short-term: 50g/11 ms/half-sine per IEC 60068-2-27: Long-term: 30g/6 ms/half-sine per IEC 60068-2-29

supply current per port:

1L/2L: 4 A (max.)

supply voltage:

24 VDC (18 31.2 V): 1L/2L

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 80 C

vibration resistance:

5g per IEC 60068-2-6

visualization:

Android/iOS app || Webserver

voltage signal type:

24 VDC

weight:

390.000 g

width:

35 mm / 1.378 inch
