16-channel digital input/output; IO Link Class B Hub; DC 24 V / 2.0 A; 8xM12 connection; HubLine.

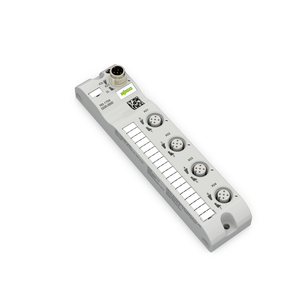

The WAGO 765 series IO-Link hub, model 16DIO FLD IOL-B HUB DC 24V 2A, features 32 I/O channels, including 16 digital inputs (24Vdc transistor, type-3 high-side switching, 0.2-20ms filter) and 16 digital outputs (24Vdc). It supports IO-Link communication and is equipped with a 5-pin A-coded M12 connector for fieldbus and eight 5-pin A-coded M12 connectors for I/O ports. The hub is designed for 2-hole screw mounting, has an IP67 protection rating, and operates in ambient temperatures ranging from -25°C to +70°C. It is equivalent to model number 7651706200000.
- communication:
- IO-Link Class B Slave
- conformity marking:
- CE
- connection technology communication fieldbus:
- 1 x A-coded M12: 5-pole
- connection technology inputs outputs:
- 8 x A-coded M12: 5-pole
- connection technology supply:
- 1 x A-coded M12: 5-pole: via IO-Link port (1L/2L)
- country of origin sales organisation germany:
- DE
- depth:
- 158.5 mm / 6.24 inch
- diagnostics:
- Undervoltage: overcurrent: overload: overtemperature
- emc emission of interference:
- Per EN 61000-6-4
- emc immunity to interference:
- Per EN 61000-6-2
- height:
- 30 mm / 1.181 inch
- input characteristic:
- High-side switching || Type 3, per IEC 61131-2
- input filter:
- 0.2 20 ms
- number of digital inputs:
- 16
- number of digital outputs:
- 16
- operating altitude:
- 0 2000 m
- output current per channel:
- 0.0833333333333333
- overvoltage category:
- II (EN 60664-1)
- packaging type:
- Box
- parameters:
- Input filter || Output current || Temperature
- pollution degree 5:
- 3 per EN 60664-1
- power consumption max:
- 4000 mA
- power consumption note:
- 1L: 0.2 A: 2L: 0.1 A: + load current
- protection class:
- III per EN 61140, IEC 61140, VDE 0140-1
- protection type:
- IP67
- reverse voltage protection:
- Yes
- shock resistance:
- Short-term: 50g/11 ms/half-sine per IEC 60068-2-27: Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
- supply voltage:
- 24 VDC (18 31.2 V): 1L/2L
- surrounding air temperature operation:
- -25 70 C
- surrounding air temperature storage:
- -40 80 C
- vibration resistance:
- 5g per IEC 60068-2-6
- voltage signal type:
- 24 VDC
- weight:
- 170.000 g
- width:
- 60 mm / 2.362 inch
