Description

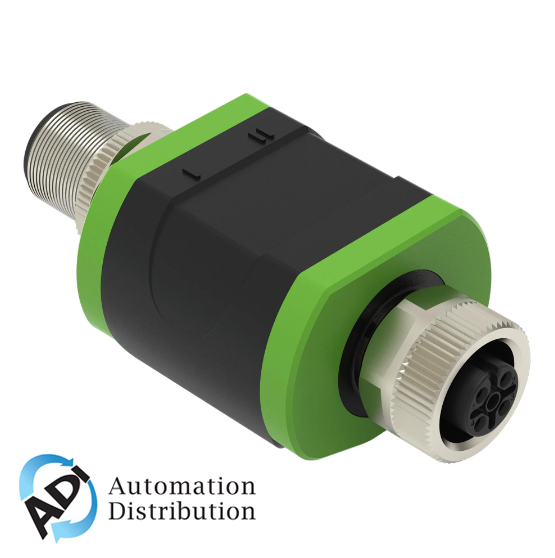

IP67 2 CH AO 0-10 to IO-Link Converter
Application: Decentralized preprocessing and output of analog signals This device controls a connected actuator or any other unit that has an analog input (0 … 10 V). The device has two analog voltage outputs.
Use as an IO-Link device: The device has an IO-Link communication interface that requires an IO-Link-capable module (IO-Link master) for interoperation. The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.
.The WAGO 765 series IO-Link converter features two analog outputs (0-10Vdc) and IO-Link communication capability, operating with a supply voltage range of 18-30Vdc (24Vdc nominal). It includes a 5-pin A-coded M12 female connector for output and a 4-pin A-coded M12 male connector for IO-Link, with an IP67 rating for protection against dust and water. The device is designed to function in ambient temperatures ranging from -25°C to +70°C and is equivalent to model number 7652704200000.
