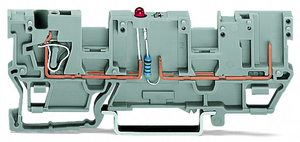

WAGO 769-219/281-434 1-conductor/1-pin component carrier terminal block; with 2 jumper positions; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; gray
Wago
$11.53
LED carrier terminal block; with red LED (PN); 24 VDC; rail-mount; 1-pin/1-conductor; 5 mm wide; gray.
The WAGO 769 X-COM series component carrier feed-through terminal block features a single deck with a red LED indicator (24Vdc, anode on the left side), two jumper positions, and a center marking slot. It is gray in color and designed for one feed-through pole with two wires (one clamp and one plug-in pin) supporting a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block has a rated current of 0.025A and utilizes CAGE CLAMP spring connections along with plug-in pin connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 769219281434.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.161 MJ
- flammability class per ul94:
- V0
- height:
- 87.5 mm / 3.445 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- number of connection points:
- 1
- number of connection points 2:
- 1
- packaging type:
- Box
- rated current:
- 0.025 A
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 8.226 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
