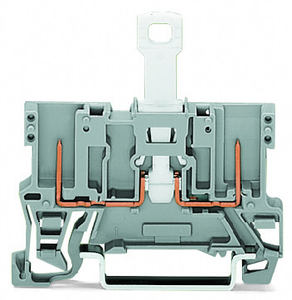

WAGO 769-221 2-pin carrier terminal block; with shield contact; for DIN-rail 35 x 15 and 35 x 7.5; gray
Wago
$3.18
2-pin carrier terminal block; with shield contact; for DIN-rail 35 x 15 and 35 x 7.5; gray.
The WAGO 769 X-COM series carrier feed-through terminal block is a gray, 1-deck/level component with a shield contact and center marking slot. It features one shield-through pole for two wires, each with a plug-in pin connection, and is rated for a current of 32A. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 769221.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.101 MJ
- flammability class per ul94:
- V0
- height:
- 71.5 mm / 2.815 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 4 kV
- ratings per:
- IEC/EN 60947-7-1
- weight:
- 6.701 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
