Wago 769-501

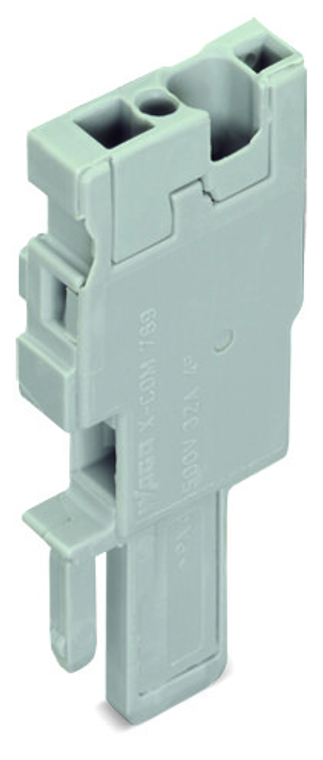

WAGO 769-501 Start module for 1-conductor female connector; with integrated end plate; 4 mm²; 1-pole; 4,00 mm²; gray

Wago
SKU:
7690501
$2.46
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Start module for 1-conductor female connector; CAGE CLAMP; 4 mm²; Pin spacing 5 mm; 1-pole; coding finger; with integrated end plate; 4,00 mm²; gray.

The WAGO 769 X-COM series start module is a 1-conductor female connector with an integrated end plate, featuring a 5mm pin spacing and a 4mm2 nominal cross-section. It supports wire sizes from 0.08mm2 to 4mm2 or #28AWG to #12AWG and is rated for a current of 32A. The connector is gray in color, utilizes CAGE CLAMP spring connections, and is designed for plug-in mounting with a 5mm width. This module is equivalent to the 769501 model.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
DE
depth:
18.3 mm / 0.72 inch
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fire load:
0.057 MJ
flammability class per ul94:
V0
height:
45.2 mm / 1.78 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
module width:
5 mm / 0.197 inch
nominal cross section:
4 mm
nominal voltage iii 3:
500 V
packaging type:
Bag
pole no:
1
rated current:
32 A
rated surge voltage iii 3:
6 kV
ratings per:
IEC/EN 61984
safety information 1:
According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
solid conductor:
0.08 4 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
3.351 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
