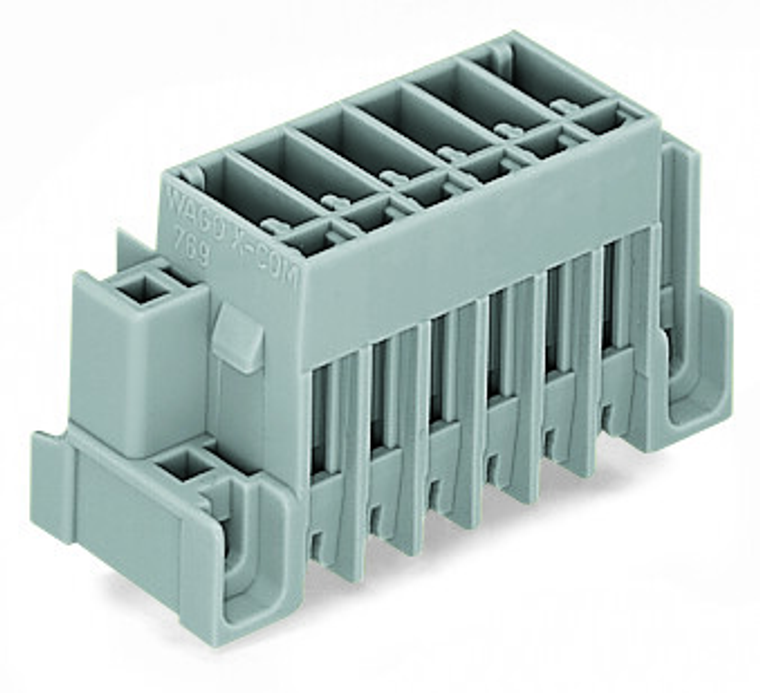

WAGO 769-636/004-000 THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5 mm; 6-pole; gray
X-COM through-panel PCB connector (male); with straight solder pins; 1 x 1 mm; vertical mounting; 6-pole; pin spacing 5 mm / 0.197 in; with fixing flanges.
The PCB straight THT male header from the WAGO 769 X-COM series features 1mm x 1mm solder pins with 5mm pin spacing and feed-through flanges. It has 6 poles, is gray in color, and supports a rated current of 32A. The header includes Spring-cage (push-in) connections and is in a straight shape, equivalent to the model 769636004000.
- color:
- Gray
- connector connection type:
- For PCB
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 18.3 mm / 0.72 inch
- fire load:
- 0.173 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.2 mm / 0.874 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- mating direction to the pcb:
- 90
- mismating protection:
- No
- mounting type:
- Feedthrough flange
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 6
- rated current:
- 32 A
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 500 V
- weight:
- 7.570 g
- width:
- 44.7 mm / 1.76 inch
