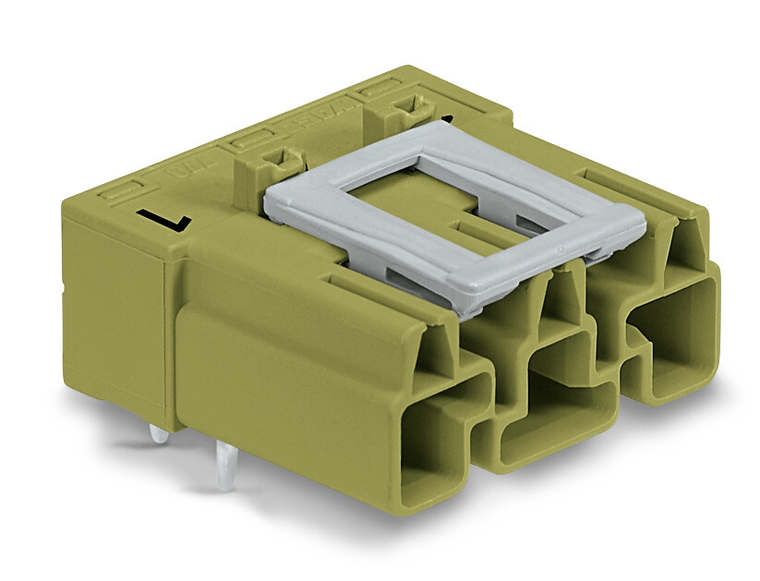

WAGO 770-873/011-000

SKU:

770-873/011-000

UPC:

MPN:

770-873/011-000

Condition:

New

application:

Measurement and regulation technology

clamping spring material:

Chrome nickel spring steel (CrNi)

coding:

B

color:

Light green

connector connection type:

For PCB

contact material:

Copper or copper alloy (surface-treated)

contact type pluggable connector:

Male connector/plug

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

PL

depth:

26 mm / 1.024 inch

design:

Angled

drilled hole diameter with tolerance:

1.5 (-0.1 +0.1) mm

fire load:

0.145 MJ

height:

18.1 mm / 0.713 inch

height from the surface:

14.6 mm / 0.575 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

Yes

locking of plug in connection:

Locking lever

marking:

1 2 3

mating direction to the pcb:

0

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal voltage iii 3:

250 V

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of mating cycles:

200, without resistive load

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

10 mm / 0.394 inch

pole no:

3

processing temperature:

-5 +40 C

rated current:

25 A

rated current ul 1977:

23 A

rated surge voltage iii 3:

4 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

Locked: > 80 N

solder pin arrangement:

2 in-line solder pins/pole

solder pin dimensions:

1 x 0.8 mm

solder pin length:

3.5 mm

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

6.574 g

width:

27 mm / 1.063 inch
