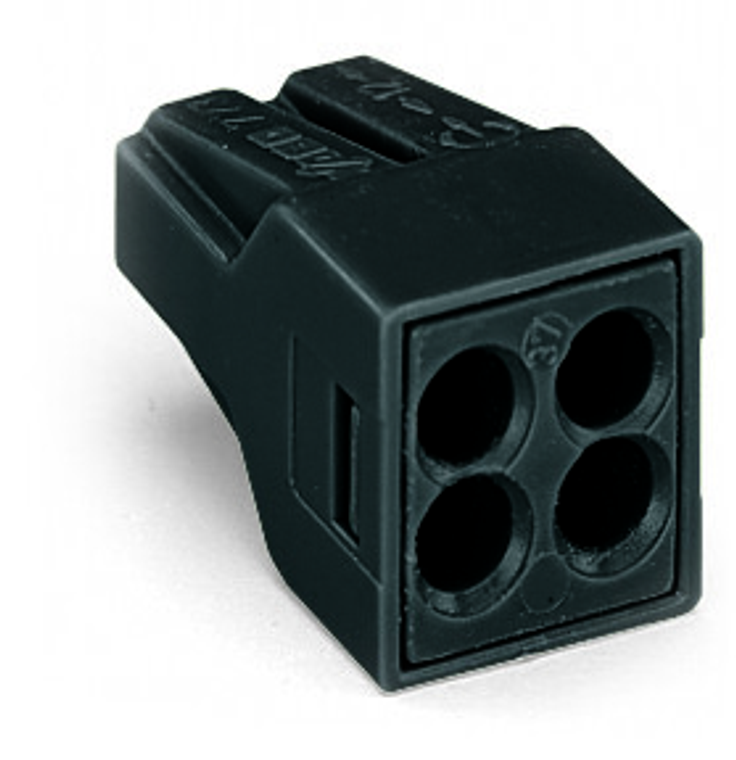

WAGO 773-514 PUSH WIRE connector; 4-conductor, high temperature; black; Max. surrounding air temperature: 105 °C
Wago
$0.34
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 773-514 PUSH WIRE connector; 4-conductor, high temperature; black; Max. surrounding air temperature: 105 °C
PUSH WIRE connector for junction boxes; 4-conductor; continuous service temperature to 150 °C; black housing; black face.
The WAGO 773 series 4-wire connector is designed for wire sizes ranging from 1.5mm² to 2.5mm² or #16AWG to #12AWG, with a rated current of 24A according to IEC standards. It features PUSH WIRE spring connections for easy and secure wiring. The connector is black in color and is equivalent to the model 773514.
- actuation type:
- Push-in
- connectable conductor materials note:
- WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically destroys the oxide film during
- color:
- Black
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- PUSH WIRE
- continuous operating temperature:
- 150 C
- country of origin sales organisation germany:
- CN
- cover color:
- Black
- depth:
- 19.5 mm / 0.768 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V2
- height:
- 13.1 mm / 0.516 inch
- legend ratings:
- (II / 2) Overvoltage category II / Pollution degree 2
- nominal voltage ii 2:
- 400 V
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage ii 2:
- 4 kV
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- In grounded power lines
- solid conductor:
- 0.75 2.5 mm / 18 12 AWG
- stranded conductor:
- 1.5 2.5 mm / 16 12 AWG
- strip length:
- 12 mm / 0.47 inch
- surrounding air temperature operation:
- 60 C
- weight:
- 2.111 g
- width:
- 13 mm / 0.512 inch
- wiring direction:
- Side-entry wiring
