Wago

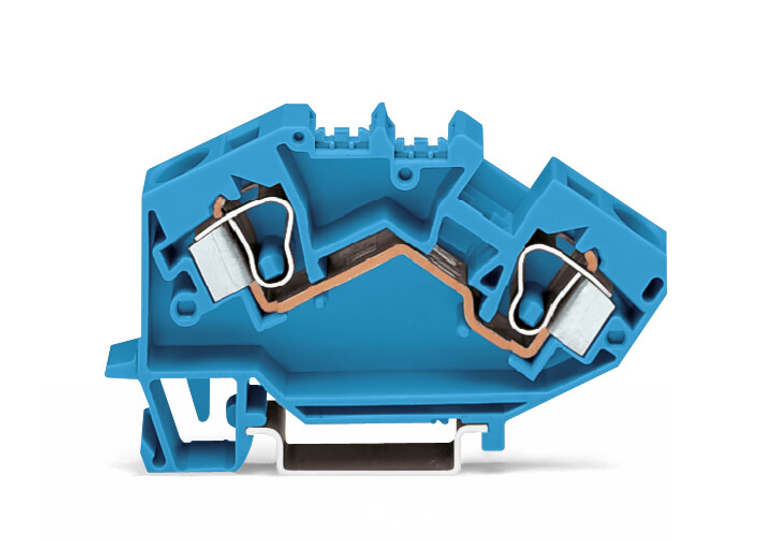

WAGO 784-604

SKU:

784-604

UPC:

MPN:

784-604

Condition:

New

actuation type:

Operating tool

color:

Blue

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

43.5 mm / 1.713 inch

design:

Angled

fine stranded conductor:

0.2 10 mm / 24 8 AWG

fine stranded conductor 2:

0.2 16 mm / 24 6 AWG

fire load:

0.357 MJ

flammability class per ul94:

V0

height:

82.5 mm / 3.248 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

1000 V

packaging type:

Box

rated current:

57 A

rated surge voltage iii 3:

8 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.2 10 mm / 24 8 AWG

solid conductor 2:

0.2 16 mm / 24 6 AWG

strip length:

12 13 mm / 0.47 0.51 inch

weight:

23.050 g

width:

10 mm / 0.394 inch

wiring direction:

Front-entry wiring
