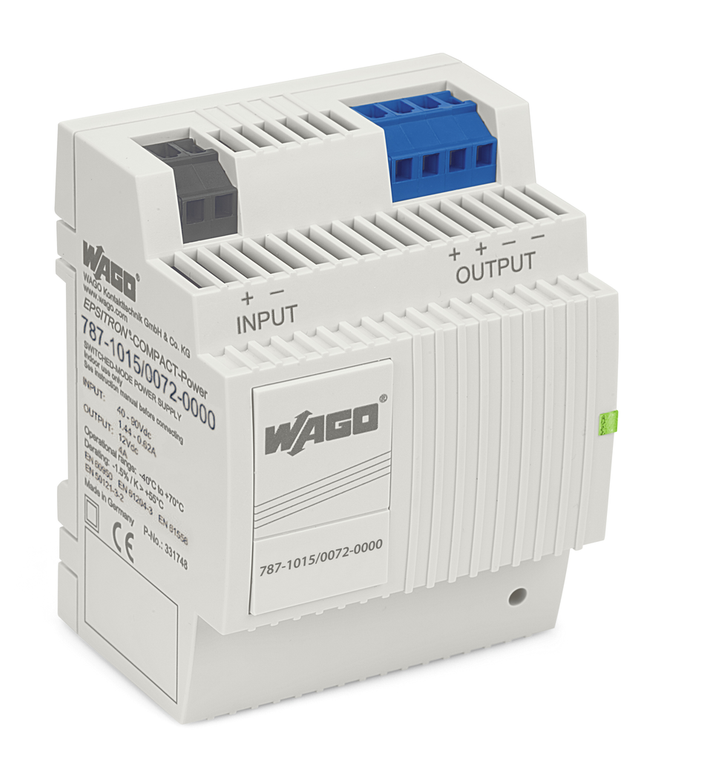

WAGO 787-1015/072-000

(No reviews yet) Write a Review

Write a Review

WAGO 787-1015/072-000

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

787-1015/072-000

UPC:

MPN:

787-1015/072-000

Condition:

New

conformity marking:

CE

connection technology:

CAGE CLAMP

connection type 1:

Input/output

control deviation:

¤ 1 %

country of origin sales organisation germany:

DE

current limitation:

1.1 x Io nom (typ.)

default setting:

DC 12 V

depth:

59 mm / 2.323 inch

depth from upper edge of din rail:

55 mm / 2.165 inch

derating:

-1.5 %/K (> 55 C)

discharge current:

¤ 1 mA

efficiency typ:

0.85

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

89 mm / 3.504 inch

input current ii:

¤ 0.79 A (72 VDC)

input voltage range:

DC 40 90 V

inrush current:

¤ 30 A (NTC)

internal fuse:

T 4 A / 125 VDC

isolation voltage pri sec:

DC 4.242 kV

mains failure hold up time:

8 ms (72 VDC)

mounting type:

DIN-35 rail

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

DC 72 V

nominal mains frequency range:

0 Hz

nominal output current io nom:

4 A (24 VDC): 3.1 A (in any mounting position)

nominal output power:

48 W

nominal output voltage uo nom:

DC 12 V (SELV)

open circuit proof:

Yes

operation status indicator:

Green LED (Uo)

overload behavior:

Constant current

overvoltage category:

II

overvoltage protection secondary:

Internal protective circuit || ¤ 21.5 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

Yes

pollution degree:

2

power loss max pl max:

9.7 W (40 VDC / 12 VDC: 4 A)

power loss pl:

¤ 1.2 W (72 VDC: No load): ¤ 8.6 W (72 VDC: Nominal load)

protection class:

II

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: 6 A, 10 A: Tripping characteristic: B or C

relative humidity:

5 96 % (coated PCB)

residual ripple:

¤ 100 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 20 V

resistance to shock and vibration:

Category 1, Class B (per EN 61373:2010)

series operation:

Yes

short circuit protected:

Yes

signaling:

1 x Status indication LED (green)

solid conductor:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 61010-1 || EN 61010-2-201 || EN 61204-3 || EN 50121-3-2 || EN 50125 || DNV GL

strip length:

6 7 mm / 0.24 0.28 inch

surrounding air temperature operation:

-40 70 C

surrounding air temperature storage:

-40 85 C

transient suppression primary:

Varistor

wago connector:

WAGO 740 Series

weight:

235.000 g

width:

72 mm / 2.835 inch
