REL-E, DC 24V.
The WAGO 788 series replacement plug-in basic relay is a 2-pole (2P) electromechanical relay with a control voltage of 24Vdc and features 2C/O (DPDT) contacts. It has a rated current of 6A continuous, 3A at 250Vac (AC-15), and 3A at 24Vdc (DC-13). The relay includes push-in connections, plug-in mounting, and is designed with IP20 protection. The contacts are made of Silver-Nickel (AgNi) material, and it is equivalent to model 788902.
- contact material relay:
- AgNi
- country of origin sales organisation germany:
- DE
- depth:
- 29 mm / 1.142 inch
- dielectric strength control load circuit ac 1 min:
- 4 kVrms
- dielectric strength load load circuit ac 1 min:
- 3 kVrms
- dielectric strength open contact ac 1 min:
- 1.5 kVrms
- drop out time typ:
- 4 ms
- electrical life no resistive load 23 c:
- 100 x 103 switching operations
- fire load:
- 0.266 MJ
- height from the surface:
- 15.7 mm / 0.618 inch
- inrush current resistive max:
- (AC) 14 A / 4 s

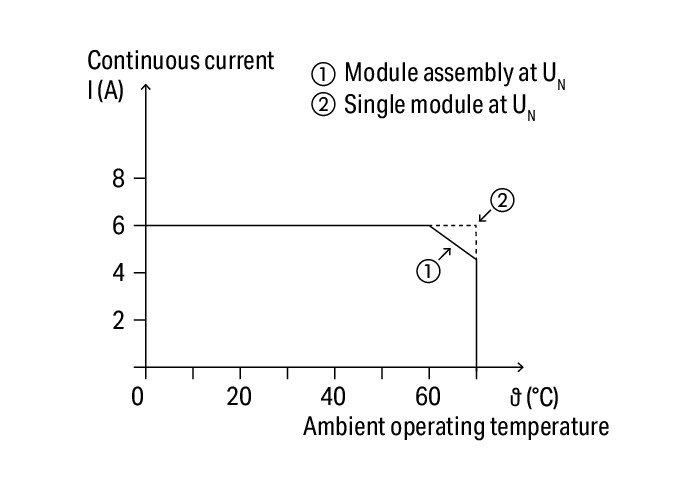

- limiting continuous current:
- 0.25
- mechanical life:
- 10 x 106 switching operations
- mounting type:
- Pluggable module
- nominal input voltage un:
- DC 24 V
- number of changeover switchover contacts:
- 2
- packaging type:
- BOX
- protection type:
- IP20
- pull in time typ:
- 10 ms
- recommended minimum load:
- 5 V / 10 mA
- standards specifications:
- EN 61810-1
- surrounding air temperature operation at un:
- -40 Ǫ 85 C
- surrounding air temperature storage:
- -40 Ǫ 85 C
- switching capacity:
- AC-15: 3 A / AC 250 V: DC-13: 3 A / DC 24 V
- switching frequency with without load max:
- 6 min-1 / 300 min-1
- switching power resistive max:
- AC 1500 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- weight:
- 17.400 g
- width:
- 12.7 mm / 0.5 inch
