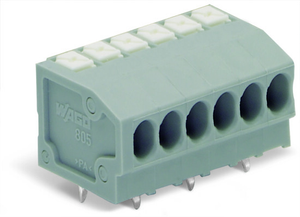

WAGO 805-156 Pack of 55

SKU:

805-156

UPC:

MPN:

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP«

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

13.6 mm / 0.535 inch

drilled hole diameter with tolerance:

1.1 (+0.1) mm

fine stranded conductor:

0.2 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG

fine stranded conductor with insulated ferrule:

0.25 ƒƒ‡ª 1 mm

fine stranded conductor with uninsulated ferrule:

0.25 ƒƒ‡ª 1 mm

fire load:

0.052 MJ

flammability class per ul94:

V0

height:

13.7 mm / 0.539 inch

height from the surface:

10.5 mm / 0.413 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +105 C

material group:

I

nominal voltage ii 2:

320 V

nominal voltage iii 3:

160 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

3.5 mm / 0.138 inch

pole no:

6

rated current:

17.5 A

rated current ul use group b:

0.416666666666667

rated current ul use group c:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

150 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.5 x 0.75 mm

solder pin length:

3.2 mm

solid conductor:

0.2 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG

strip length:

9 ƒƒ‡ª 10 mm / 0.35 ƒƒ‡ª 0.39 inch

weight:

2.796 g

width:

22.5 mm / 0.886 inch
