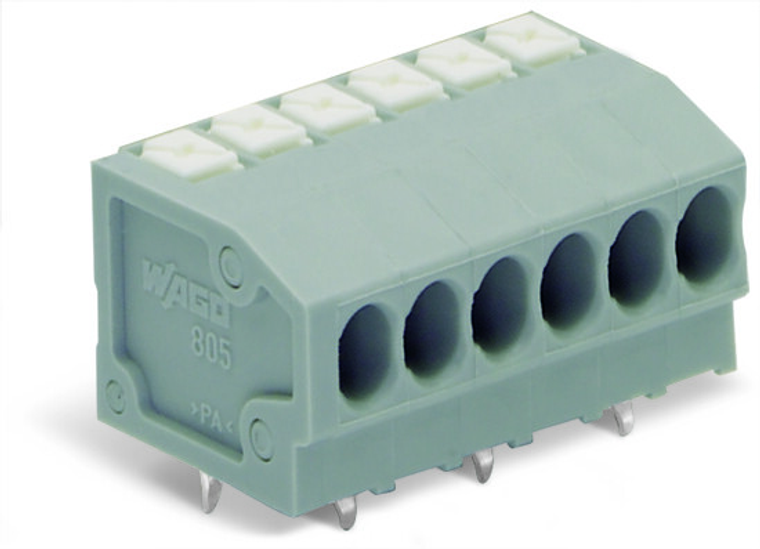

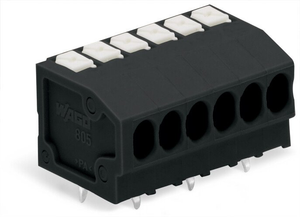

PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 2-pole; Push-in CAGE CLAMP; 1,50 mm²; gray.
The WAGO component equivalent to 805302 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and durability. The equivalent model to 805302 would have similar specifications and functionalities, making it a suitable replacement or alternative for the original part.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13.6 mm / 0.535 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.2 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1 mm
- fire load:
- 0.023 MJ
- flammability class per ul94:
- V0
- height:
- 13.7 mm / 0.539 inch
- height from the surface:
- 10.5 mm / 0.413 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 2
- rated current:
- 17.5 A
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 150 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 3.2 mm
- solid conductor:
- 0.2 ª 1.5 mm / 24 ª 16 AWG
- strip length:
- 9 ª 10 mm / 0.35 ª 0.39 inch
- weight:
- 1.066 g
- width:
- 8.5 mm / 0.335 inch
