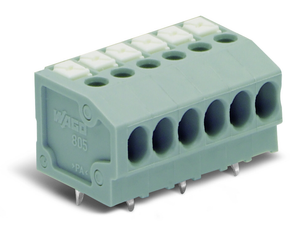

WAGO 805-309 Pack of 35
Wago
$136.85
PCB terminal block; Push-button; 1.5 mmý; Pin spacing 3.5 mm; 9-pole; Push-in CAGE CLAMPp>
- PCB terminal strips with push-buttons and Push-in CAGE CLAMP<sup></sup> connection
- Push-in termination of solid and ferruled conductors
- Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
- Convenient, tool-free operation
- Versions with/without test slots and spacers
- Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor
The WAGO component equivalent to 805309 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various applications, including industrial automation, building technology, and process control, offering high performance and durability. It is known for its ease of installation and compatibility with other WAGO products, making it a versatile choice for professionals in the field.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13.6 mm / 0.535 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.2 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1 mm
- fire load:
- 0.086 MJ
- flammability class per ul94:
- V0
- height:
- 13.7 mm / 0.539 inch
- height from the surface:
- 10.5 mm / 0.413 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 9
- rated current:
- 17.5 A
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 150 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 3.2 mm
- solid conductor:
- 0.2 ª 1.5 mm / 24 ª 16 AWG
- strip length:
- 9 ª 10 mm / 0.35 ª 0.39 inch
- weight:
- 4.272 g
- width:
- 33 mm / 1.299 inch
