Wago 811-331

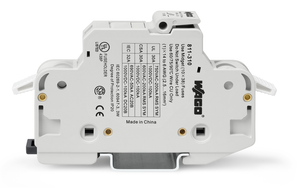

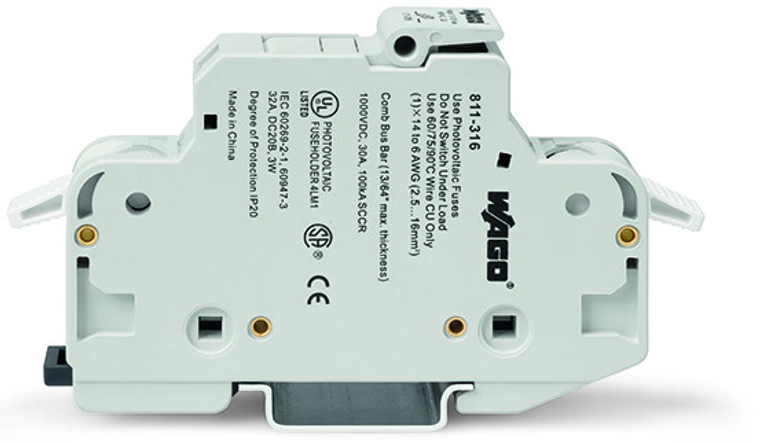

WAGO 811-331 2-conductor fuse terminal block; for cylindrical fuses 10 x 38 mm; 13/32" x 11/2"; 3-pole; with blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 16 mm²; CAGE CLAMP; 16,00 mm²; light gray

Wago
SKU:
8110331
$90.88
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor fuse holder ; for cylindrical fuses 10 x 38 mm; 13/32" x 11/2"; 3-pole; with blown fuse indication; 600 VAC/VDC; for DIN-rail 35 x 15 and 35 x 7.5; 16 mm²; CAGE CLAMP; 16,00 mm²; light gray.

The WAGO 811 series feed-through terminal block is a light gray, single-deck unit featuring a fused-disconnect for 10x38mm fuses and a blown-fuse indication, suitable for both AC and DC applications up to 600V. It has three feed-through poles and accommodates two wires per pole using CAGE CLAMP spring connections, supporting wire sizes from 2.5mm² to 16mm² or #16AWG to #6AWG. Rated for a current of 32A, it mounts on a DIN-35 rail and has a width of 52.5mm, equivalent to model 811331.

Additional Information
actuation type:
Operating tool
type of fuse:
Cylindrical fuse 10 x 38 mm
color:
Light gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
continuous operating temperature:
-35 +85 C
depth from upper edge of din rail:
55 mm / 2.165 inch
design:
Horizontal type
fine stranded conductor:
2.5 16 mm / 16 6 AWG
fire load:
0.000 MJ
height:
105 mm / 4.134 inch
insulation material:
Polyamide (PA66)
mounting type:
DIN-35 rail
nominal voltage iii 3:
690 V
packaging type:
Box
pole no:
3
rated current:
32 A
rated voltage iii 3 2:
1000 V
ratings note:
Electrical ratings are given by the fuse and blown fuse indication.
ratings per:
IEC/EN 60947-7-3
solid conductor:
2.5 16 mm / 14 6 AWG
strip length:
12 13 mm / 0.47 0.51 inch
weight:
1.111 g
width:
52.5 mm / 2.067 inch
wiring direction:
Side-entry wiring
