Wago

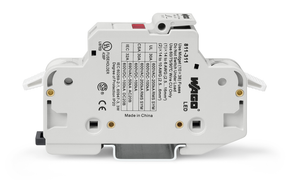

WAGO 811-411 2-conductor fuse terminal block light gray

(No reviews yet) Write a Review
SKU:
811-411
MPN:
8110411
Condition:
New
actuation type:
Operating tool
type of fuse:
Cylindrical fuse 10 x 38 mm Class CC
color:
Light gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
continuous operating temperature:
-35 +85 C
depth from upper edge of din rail:
55 mm / 2.165 inch
design:
Horizontal type
fine stranded conductor:
2.5 16 mm / 16 6 AWG
fire load:
0.000 MJ
height:
105 mm / 4.134 inch
insulation material:
Polyamide (PA66)
mounting type:
DIN-35 rail
nominal voltage iii 3:
600 V
packaging type:
Box
pole no:
1
rated current:
32 A
rated voltage iii 3 2:
600 V
ratings note:
Electrical ratings are given by the fuse and blown fuse indication.
ratings per:
IEC/EN 60947-7-3
solid conductor:
2.5 16 mm / 14 6 AWG
strip length:
12 13 mm / 0.47 0.51 inch
weight:
1.111 g
width:
17.5 mm / 0.689 inch
wiring direction:
Side-entry wiring
$19.66

Description

Fuse terminal block; for class CC fuses; with blown fuse indication; 90 - 600 VAC, 115 - 600 VDC; 1-pole

Electrical Data
  • Rated current: 32 A
Connection Data
  • Connection technology: CAGE CLAMP<sup></sup>
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 2.5 16 mm / 14 6 AWG
  • Fine-stranded conductor: 2.5 16 mm / 16 6 AWG
  • Strip length: 12 13 mm / 0.47 0.51 inch
  • No. of poles: 1
  • Total number of connection points: 2
  • Total number of potentials: 1
  • Number of levels: 1
  • Type of wiring: Side-entry wiring
Geometrical Data
  • Width: 17.5 mm / 0.689 inch
  • Height from upper-edge of DIN-35 rail: 55 mm / 2.165 inch
  • Depth: 105 mm / 4.134 inch
Mechanical Data
  • Design: horizontal
  • Type of mounting: DIN-35 rail
Material Data
  • Color: light gray
  • Insulating material: Polyamide 66 (PA 66)
  • Fire load: 0.000 MJ
  • Weight: 1.111 g
Commercial data
  • Packaging type: BOX
  • GTIN: 4050821508205
.

The WAGO 811 series feed-through terminal block is a light gray, single-deck unit with a fused-disconnect feature for 10x38mm Class CC fuses and blown-fuse indication, suitable for both AC and DC applications up to 600V. It has one feed-through pole and accommodates two wires using CAGE CLAMP spring connections, supporting wire sizes from 2.5mm² to 16mm² or #16AWG to #6AWG. Rated for a current of 32A, it mounts on a DIN-35 rail and has a width of 17.5mm, equivalent to model 811411.
