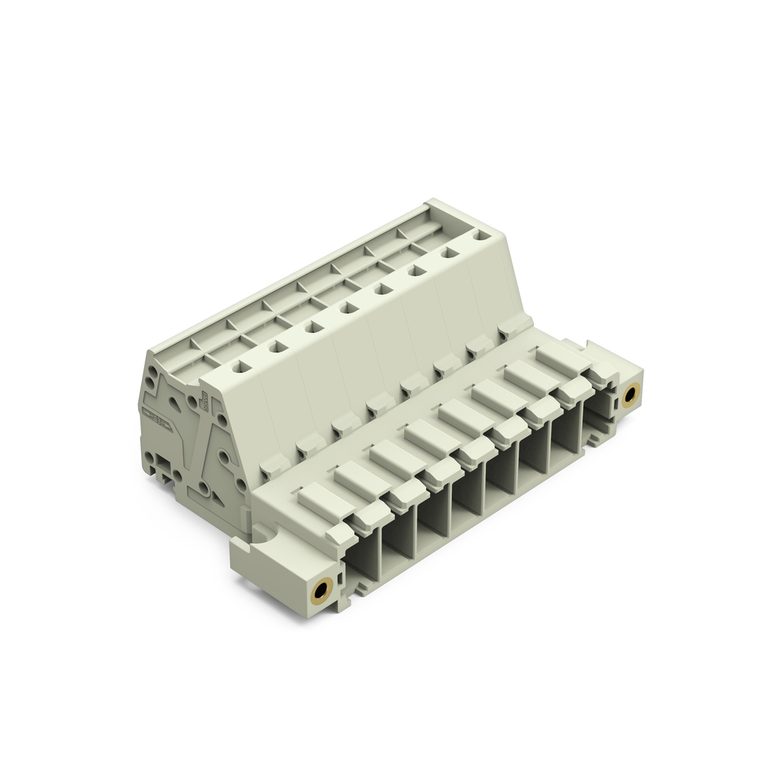

WAGO 831-3208/109-000
Wago
$24.83
1-conductor male connector 100% protected against mismating, light gray.
The WAGO component equivalent to 8313208109000 is a specific part or product within WAGO's range of electrical interconnection and automation solutions. This component is likely used in various applications requiring reliable and efficient electrical connections, such as in industrial automation, building technology, and other electrical engineering fields. WAGO is known for its high-quality products that ensure safety, durability, and ease of use, making this component a trusted choice for professionals in the industry.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 46 mm / 1.811 inch
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 6 mm
- fire load:
- 0.703 MJ
- flammability class per ul94:
- V0
- height:
- 27.6 mm / 1.087 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- locking of plug in connection:
- Threaded flange
- material group:
- I
- mismating protection:
- Yes
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- pin spacing:
- 7.62 mm / 0.3 inch
- pole no:
- 8
- rated current:
- 41 A
- rated current csa use group c:
- 41 A
- rated current ul use group c:
- 42 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 54.960 g
- width:
- 76.6 mm / 3.014 inch
