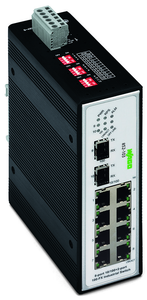

Industrial unmanaged switch; 8 - 10/100 Mb/s RJ45 ports; 2 100 Mb/s Fiber Optic ports; extended temperature range.
The WAGO 852 series is a 10-port industrial Ethernet network switch designed for harsh environments, featuring an extended temperature range of -40°C to +70°C and redundant DC power supply options. It supports Ethernet/IP communication and operates on a supply voltage of 9-48Vdc. The switch includes 8 RJ45 ports (100BASE-TX) and 2 SFP ports (single-mode/multi-mode; 100BASE-FX), and can be mounted on a DIN-35 rail or wall (50mm width). It has an IP30 rating and is equivalent to model 852103040000.
- baud rate:
- Copper cable: 10/100 Mbit/s: Fiber optic:100 Mbit/s
- color:
- Black
- communication standards:
- IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3x Flow Control
- configuration options:
- DIP switch for signal contact
- conformity marking:
- CE
- connection technology communication fieldbus:
- Copper cable: 8 x RJ-45: Fiber optic: 2 x SFP: LC fiber-optic connector
- connection technology supply:
- 1 x Built-in male connector: 231-436/001-000: included female connector (MCS Connectors): 231-106/026-000
- controls:
- 12 x DIP switch: Alarm function power supplies and ports 1 10
- country of origin sales organisation germany:
- TW
- depth:
- 120 mm / 4.724 inch
- diagnostics:
- Signal contact
- emc emission of interference:
- Per EN 61000-6-4
- emc immunity to interference:
- Per EN 61000-6-2
- esd contact air discharge:
- 8 KV / 15 KV
- fire load:
- 0.000 MJ
- height:
- 162 mm / 6.378 inch
- housing material:
- Aluminum
- indicators:
- Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary): LED (ALM) red: Alarm: LED (LNK/ACT, 100) green, LED (OFFLINE) red: Status fiber optic ports: per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports
- jumbo frame size:
- 1536 Byte
- mac table size:
- 2000 addresses
- mounting type:
- DIN-35 rail
- number of 100base fx ports:
- 2
- number of 100base tx ports:
- 8
- optical fiber type:
- Single-mode and multi-mode
- packaging type:
- Box
- packet throughput:
- 148800 pkt/s
- power consumption max:
- 6.08 W
- power consumption typ 24 v:
- 5.76 W
- protection type:
- IP30
- redundancy function:
- Redundant DC power supply
- relative humidity without condensation:
- 0.95
- shock resistance:
- Per IEC 60068-2-27
- supply voltage:
- 9 48 VDC: Cable length:< 3 m
- surrounding air temperature operation:
- -40 70 C (UL max. +60 C)
- surrounding air temperature storage:
- -40 85 C
- switching mode:
- Storeandforward: non-blocking
- transmission medium communication fieldbus:
- Copper cable: Cat. 5 or higher, 100 m maximum cable length: Fiber optic: FX Multi-Mode, LX Single-Mode
- vibration resistance:
- Per IEC 60068-2-6
- weight:
- 887.000 g
- width:
- 50 mm / 1.969 inch
