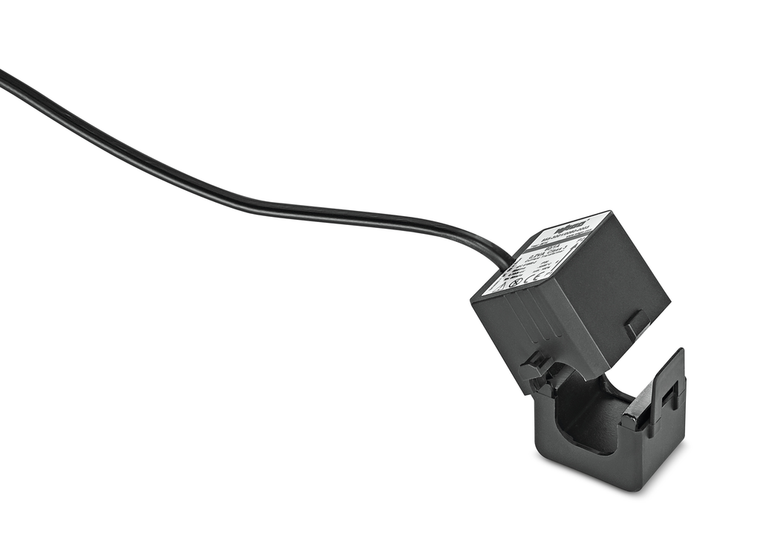

Wago 855-3001/060-003

WAGO 855-3001/060-003

Wago
SKU:
855-3001/060-003
Availability:
Contact us to confirm availability and lead times.
$342.50
Condition:
New
Current Stock:
Description
Description Split-core current transformer; 60 A / 1 A; 3 m long
Remarks Item description:

Short description:

WAGO's compact split-core current transformers are ideal for retrofit applications in existing systems. They are particularly suited for applications in which the current path may not be disrupted. The transformer's accuracy permits extremely precise current measurements. The split-core current transformers are capable of supplying the specified rated power at the end of the secondary cable. All transformers are supplied with color-coded cables. Two UV-resistant cable ties for reliable and easy mounting are also included.

Features:

  • Current ratios from 60 A up to 1000 A (primary side) and 1 A or 5 A (secondary side)
  • No interruption of the measuring cable
  • Ideal for use in very confined spaces
  • Superfast mounting
  • For use around insulated cables up to 42 mm
  • Compact and hinged
  • Color-coded connecting cables up to 5 m


    •

    Item properties

    Miscellaneous

    Name Value Unit
    Conformity marking  CE
    Cable length [m]  3  m
    Degree of protection  IP20
    Marking  brown = S1, blue = S2
    Fine-stranded conductor  0.5 0 mm /
    Weight [g]  240  g
    Type of mounting  Surrounding conductor (divisible)
    Cross sections  0.5 mm fine-stranded
    Ambient operating temperature  -10 +55
    Housing material  PA 66
    Relative humidity  5 % 85 % (non-condensing)
    .

    The Split-core measurement current transformer (CT) from WAGO's 855 series, with a 60/1A rating and Accuracy Class 3 (Cl.3), has a maximum burden of 0.2VA. It comes with a 3-meter cable that has bare end flying leads for cable mounting and is rated IP20. The transformer is designed to operate in ambient temperatures ranging from -10°C to +55°C and is equivalent to model number 8553001060003.

    Additional Information
    accuracy class:
    3
    cable length:
    3 m
    cable type:
    2 x 0.5 mm: fine-stranded
    color code:
    Brown = S1: blue = S2
    conformity marking:
    CE
    country of origin sales organisation germany:
    NL
    feedthrough for measurement conductor:
    18 mm
    fire load:
    0.000 MJ
    flammability class per ul94:
    V2
    mounting type:
    Split-core current transformer (suspended)
    operating altitude max:
    2000 m
    packaging type:
    Box
    primary rated current:
    60 A
    rated continuous thermal current icth:
    1
    rated frequency:
    50 60 Hz
    rated power sr:
    0.2 VA
    rated short time thermal current ith:
    60 x IN / 1 s
    rated surge current idyn:
    2.5 x Ith
    relative humidity:
    5 85 % (without condensation)
    secondary rated current:
    0.0416666666666667
    standards specifications:
    EN 61869-1 || EN 61869-2
    surrounding air temperature operation:
    -10 55 C
    surrounding air temperature storage:
    -20 70 C
    test voltage:
    AC 3 kV: 50 Hz: 1 min
    weight:
    240.000 g
