Wago

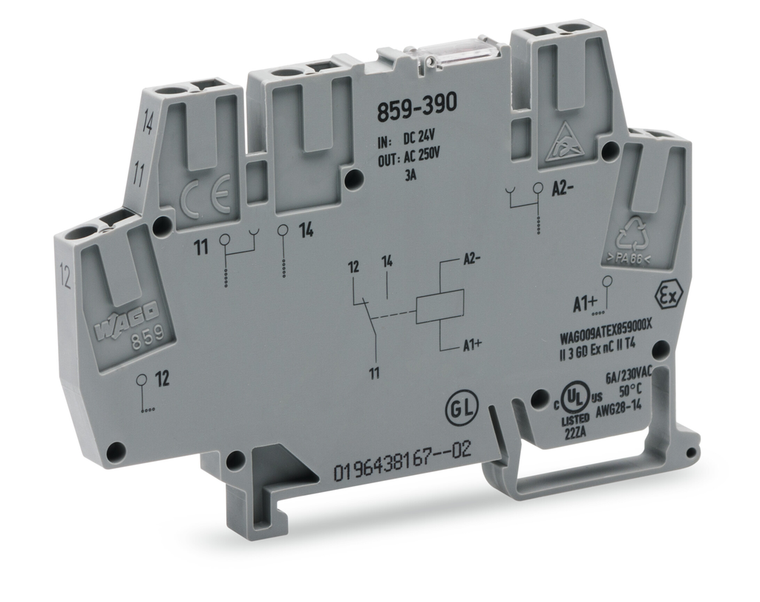

WAGO 859-390

SKU:

859-390

UPC:

MPN:

859-390

Condition:

New

bounce time typ:

3.5 ms

color:

Gray

connection technology:

CAGE CLAMP

contact material relay:

AgSnO2

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

56 mm / 2.205 inch

dielectric strength control load circuit ac 1 min:

4 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

6 ms

electrical life no resistive load 23 c:

50 x 103 switching operations

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.249 MJ

height:

91 mm / 3.583 inch

input voltage range:

-30 +25 %

limiting continuous current:

0.208333333333333

mechanical life:

5 x 106 switching operations

mounting type:

DIN-35 rail

nominal input current at un:

12 mA

nominal input voltage un:

DC 24 V

note:

To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

number of changeover switchover contacts:

1

operating altitude max:

2000 m

packaging type:

Box

pollution degree:

2

processing temperature:

-25 +50 C

pull in time typ:

6 ms

rated surge voltage:

4 kV

rated voltage:

250 V

recommended minimum load:

10 V / 10 mA: 24 V / 1 mA

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.08 2.5 mm / 28 14 AWG

standards specifications:

EN 61010-2-201 || EN 61810-1 || EN 61373 || GL || UL 508

status indicator:

Red LED

strip length:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation at un:

-40 70 C

surrounding air temperature storage:

-40 70 C

switching frequency with without load max:

6 min-1 / 180 min-1

switching power resistive max:

AC 1250 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

weight:

22.870 g

width:

6 mm / 0.236 inch
