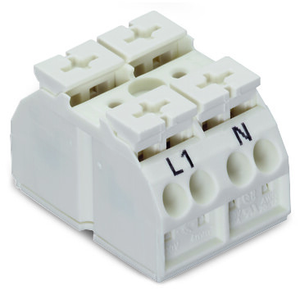

4-conductor chassis-mount terminal strip; without ground contact; L1-N; 2-pole; 1 snap-in foot per pole; 4 mm²; 4,00 mm²; white.
The WAGO 862 series is a white, chassis-mount terminal strip designed for feed-through and neutral-through connections, featuring one deck/level with buttons on both sides and a snap-in foot per pole. It is marked "L1-N" and includes one feed-through pole and neutral-through (1P+N) for 8 wires (4 push-in + 4 push-in) suitable for wire sizes ranging from 0.5mm² to 4mm² or #20AWG to #12AWG. The terminal strip supports a rated current of 32A and utilizes Push-in CAGE CLAMP spring connections. It can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, equivalent to model 8621632.
- actuation type:
- Operating tool || Push-button
- color:
- White
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 35 mm / 1.378 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 1.5 mm / 20 16 AWG
- fire load:
- 0.223 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.3 mm / 0.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- L1-N
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Bag
- pin spacing:
- 12 mm / 0.472 inch
- pole no:
- 2
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- stranded conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 10 11 mm / 0.39 0.43 inch
- weight:
- 14.238 g
- width:
- 24 mm / 0.945 inch
- wiring direction:
- Side-entry wiring
