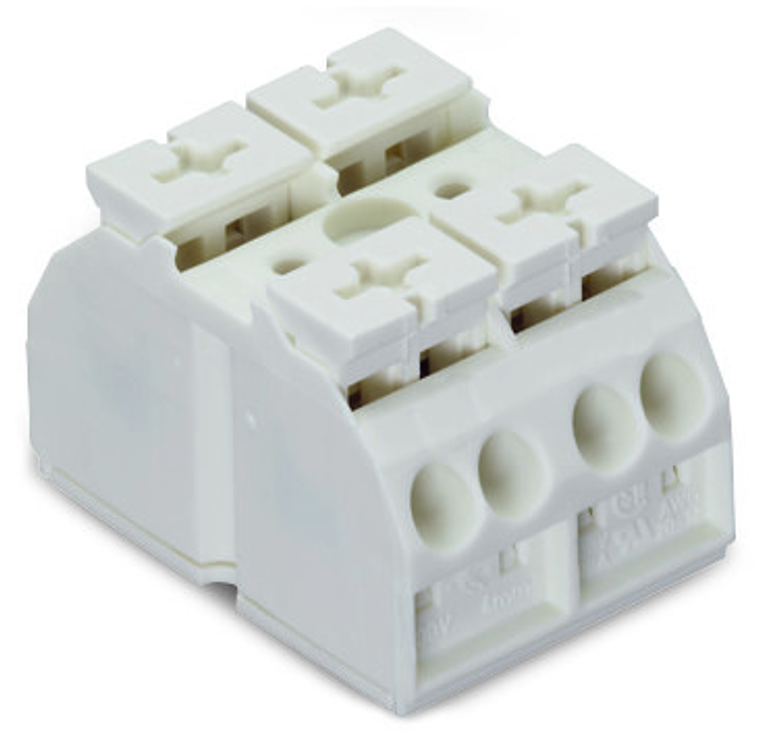

4-conductor chassis-mount terminal strip; without ground contact; 2-pole; for 3 mm ø screw and nut; with 2x pin; 4 mm²; 4,00 mm²; white.
The WAGO 862 series feed-through chassis-mount terminal strip is a white, 1-deck/level component with buttons on both sides, featuring 2 feed-through poles and 8 push-in wire connections (4+4). It accommodates wire sizes from 0.5mm² to 4mm² or #20AWG to #12AWG and supports a rated current of 32A. The terminal strip utilizes Push-in CAGE CLAMP spring connections and is mounted using a 3mm screw and nut. It is equivalent to the model 862652.
- color:
- Light gray
- conformity marking:
- CE
- connection technology field supply:
- 6 x CAGE CLAMP
- connection type 1:
- Field supply
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 6.3 A
- depth:
- 69.8 mm / 2.748 inch
- depth from upper edge of din rail:
- 62.6 mm / 2.465 inch
- emc emission of interference:
- Per EN 61000-6-4, marine applications
- emc immunity to interference:
- Per EN 61000-6-2, marine applications
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 1.151 MJ
- fuse:
- 5 x 20: T 6.3 A (not included)
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of outgoing power jumper contacts:
- 3
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- signal type:
- Voltage
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts (power supply via CAGE CLAMP connection: transmission via spring contact)
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- vibration resistance:
- 4g per IEC 60068-2-6
- voltage signal type:
- 24 VDC
- weight:
- 46.500 g
- width:
- 12 mm / 0.472 inch
