Wago 869-319

WAGO 869-319 2-conductor terminal block; without push-buttons; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; light gray

Wago
SKU:
51129039
$1.87
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor terminal block; without push-buttons; with snap-in mounting foot; 1-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; light gray.

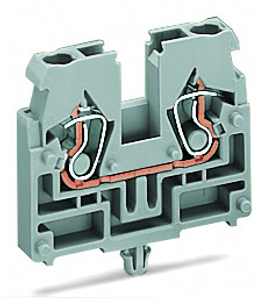

The WAGO 869 series feed-through terminal block is a light gray, single-deck unit designed for connecting two wires using CAGE CLAMP spring connections. It accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and supports a rated current of 24A. The terminal block features snap-in mounting feet for easy installation on DIN rails or surfaces and includes side marking slots for labeling. It is equivalent to model 869319 and has a 5mm width.

Additional Information
actuation type:
Operating tool
color:
Light gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth:
33.4 mm / 1.315 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.08 1.5 mm / 28 14 AWG
fire load:
0.073 MJ
flammability class per ul94:
V0
height from the surface:
27.6 mm / 1.087 inch
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
Snap-in foot
nominal voltage iii 3:
500 V
packaging type:
Box
rated current:
24 A
rated surge voltage iii 3:
6 kV
safety information 1:
Max. insulation diameter: 4.4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
4.071 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
