WAGO 869-327 2-conductor center terminal block; without push-buttons; 2.5 mm²; CAGE CLAMP; 2,50 mm²; green-yellow

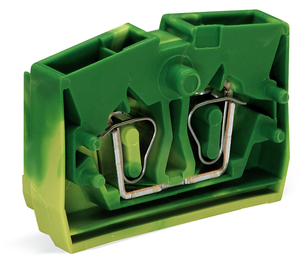

2-conductor center terminal block; without push-buttons; without snap-in mounting foot; 1-pole; 2.5 mm²; CAGE CLAMP; 2,50 mm²; green-yellow.
The WAGO 869 series feed-through terminal block is a green-yellow, single-deck grounding/earthing center terminal block designed for protective-earth (1PE) applications. It features side marking slots and accommodates two wires (one clamp each) ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block utilizes CAGE CLAMP spring connections and is equivalent to model 869327.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.4 mm / 1.315 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.073 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 27.6 mm / 1.087 inch
- marking level:
- Side marking
- packaging type:
- Box
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 4.063 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
