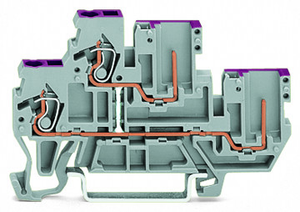

WAGO 870-108 2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin through terminal block; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
Wago
$5.26
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 870-108 2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin through terminal block; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin through terminal block; 2.5 mm²; L; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 870 X-COM series carrier feed-through terminal block is a double-deck terminal block with internal commoning and side marking slots, marked with "L". It features one feed-through pole that accommodates two clamps and two plug-in pins, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 16A and utilizes CAGE CLAMP spring connections along with plug-in pin connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 870108.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 40 mm / 1.575 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.164 MJ
- flammability class per ul94:
- V0
- height:
- 70 mm / 2.756 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 16 A
- rated surge voltage iii 3:
- 6 kV
- safety information 1:
- Max. insulation diameter: 4.4 mm
- safety information 2:
- 2-conductor female plugs cannot be used.
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 9.500 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
