Wago

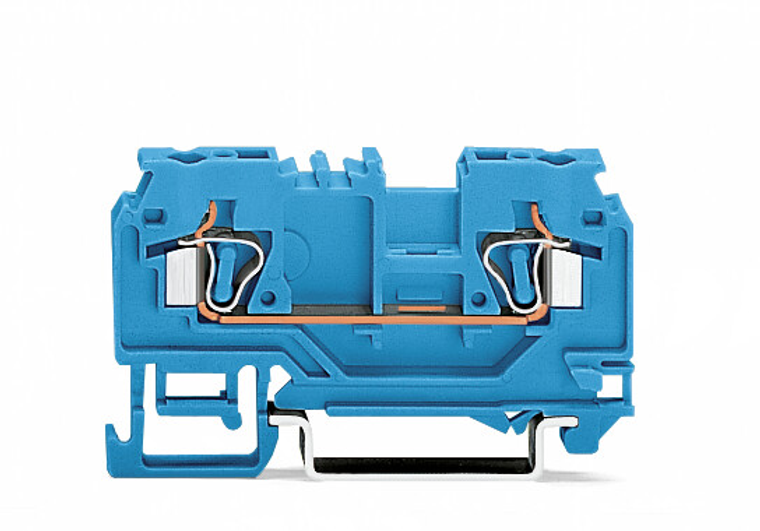

WAGO 880-904/999-940

SKU:

880-904/999-940

UPC:

MPN:

880-904/999-940

Condition:

New

actuation type:

Operating tool

color:

Blue

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

PL

depth from upper edge of din rail:

29 mm / 1.142 inch

design:

Horizontal type

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.121 MJ

flammability class per ul94:

V0

height:

58.5 mm / 2.303 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

800 V

packaging type:

Box

rated current:

25 A

rated surge voltage iii 3:

8 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

6.503 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
