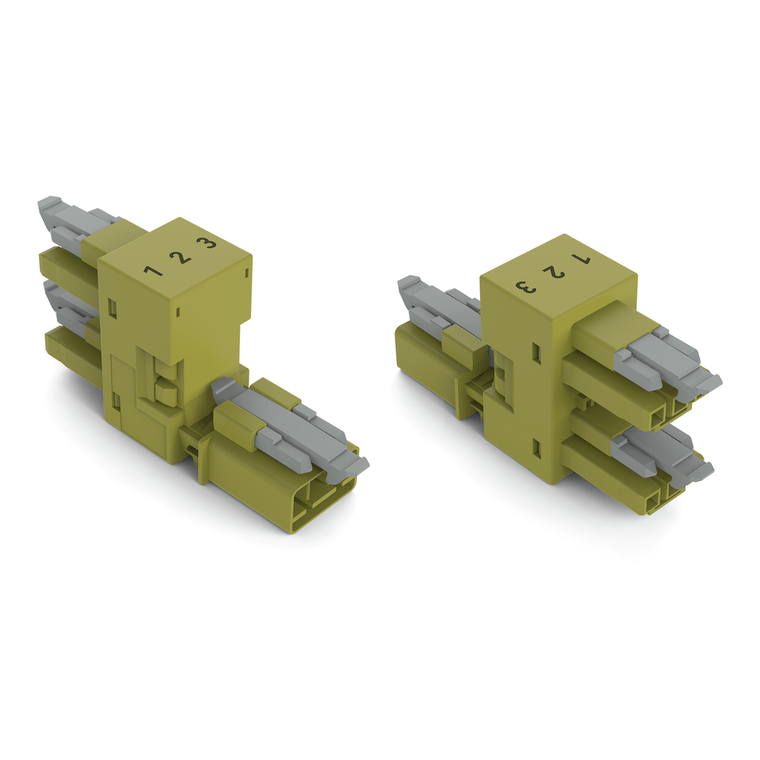

h-distribution connector; 3-pole; Cod. B; 1 input; 2 outputs; outputs on one side; 3 locking levers; for flying leads; light green.
The WAGO component equivalent to 8901762 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, often utilized in various industrial applications. This component ensures secure and stable connections, contributing to the overall performance and safety of the system in which it is integrated.
- application:
- Measurement and regulation technology
- coding:
- B
- color:
- Light green
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 63.5 mm / 2.5 inch
- distributor type:
- H-distribution connector (unidirectional)
- fire load:
- 0.250 MJ
- height:
- 29 mm / 1.142 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- 1 2 3
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of locking levers:
- 3
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 3
- processing temperature:
- -5 +40 C
- protection class:
- IP20: IP40 when mated
- rated current:
- 16 A
- rated current ul 1977:
- 14 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- suitable:
- For flying leads
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 13.913 g
- width:
- 16.4 mm / 0.646 inch
