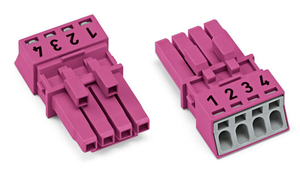

fine stranded conductor with ferrule push in termination:
0.75 mm / 20 AWG
fine stranded conductor with insulated ferrule:
0.25 0.75 mm / 22 20 AWG
fine stranded conductor with uninsulated ferrule:
0.25 0.75 mm / 22 20 AWG
fire load:
0.099 MJ
height:
11.7 mm / 0.461 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
locking lever:
Can be retrofitted
locking of plug in connection:
Locking lever
marking:
1 2 3 4
mating force of a plug in connection:
Approx. 20 70 N (depending on pole number)
mismating protection:
Yes
nominal cross section:
1.5 mm
nominal voltage iii 3:
400 V
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
note on mismating protection:
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
note on rated current 1:
13 A for 3-pole load10 A for 4-pole load
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
4.4 mm / 0.173 inch
pole no:
4
processing temperature:
-5 +40 C
protection class:
IP20: IP40 when mated with strain relief housing
rated current:
16 A
rated current ul 1977:
0
rated surge voltage iii 3:
6 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
Locked: > 80 N
solid conductor:
0.25 1.5 mm / 22 16 AWG
solid conductor push in termination:
0.75 1.5 mm / 20 16 AWG
stranded conductor:
0.25 1 mm / 22 18 AWG
strip length:
9 mm / 0.35 inch
unmating force of a plug in connection:
Unlocked: approx. 20 70 N (depending on pole number)
Lighting connector; push-button, external; without ground contact; DA+ DA- L PE N; 5-pole; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air...
