Wago

WAGO 890-655

(No reviews yet) Write a Review
SKU:
890-655
MPN:
890-655
Condition:
New
application:
General mains applications
coding:
A
color:
White
contact material:
Copper or copper alloy (surface-treated)
continuous operating temperature:
-35 +85 C
country of origin sales organisation germany:
PL
depth:
37.2 mm / 1.465 inch
distributor type:
Intermediate coupler
fire load:
0.094 MJ
height:
10.5 mm / 0.413 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
locking lever:
Yes
locking of plug in connection:
Locking lever
mating force of a plug in connection:
Approx. 20 70 N (depending on pole number)
mismating protection:
Yes
nominal voltage iii 3:
400 V
note:
At least one snap-in connector without a locking lever is required on one side when connecting two lights directly via intermediate coupler.
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
note on mismating protection:
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
4.4 mm / 0.173 inch
pole no:
5
processing temperature:
-5 +40 C
protection class:
IP20: IP40 when mated
rated current:
13 A
rated current ul 1977:
0
rated surge voltage iii 3:
6 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
When locked: > 80 N
unmating force of a plug in connection:
Unlocked: approx. 20 70 N (depending on pole number)
weight:
5.750 g
width:
23.65 mm / 0.931 inch
  • Wago 890-655
  • Wago 890-655
$3.41

Description

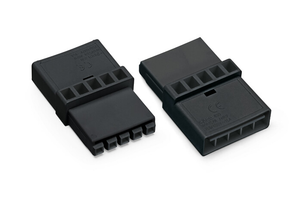

Intermediate coupler; 5-pole; Cod. A; for sockets and plugs; white.

The WAGO component equivalent to 890655 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and communication within various industrial applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
