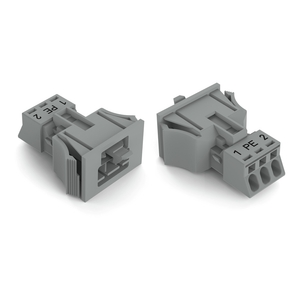

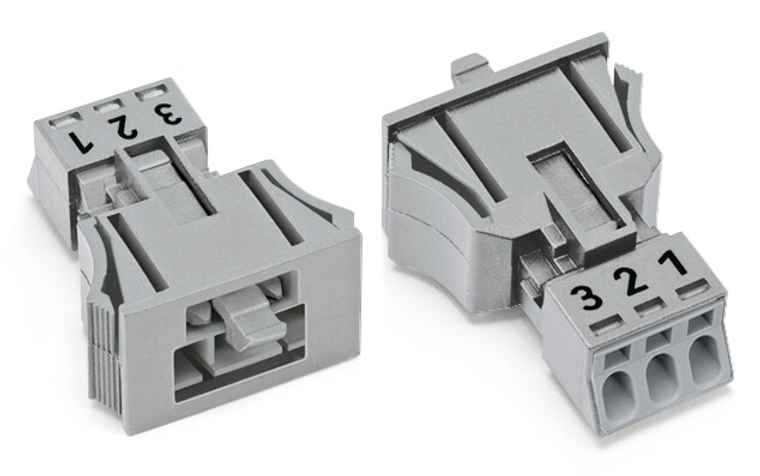

| Description | Plug; Snap-in version; 3-pole | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | Note: All connectors for fixed installations (snap-in versions for lighting fixtures or devices, female locking latch all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). All WINSTA components are 100% protected against mismating in terms of: a.) plugging different number of poles b.) plugging when turned by 180 /p> c.) plugging when laterally staggered d.) plugging one pole Note on Continuous Service Temperature: -35 +85 PVC cable for temperatures 70 (including halogen-free) Insulating parts for temperatures 105 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The WAGO component equivalent to 890753 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various applications, including industrial automation, building technology, and process control. It is known for its high quality, durability, and ease of installation, making it a preferred choice for professionals in the field.
- actuation type:
- Operating tool || Push-in
- application:
- Measurement and regulation technology
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- B
- color:
- Gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Male connector/plug
- continuous operating temperature:
- -35 ª +85 C
- country of origin sales organisation germany:
- PL
- depth:
- 39.85 mm / 1.569 inch
- fine stranded conductor:
- 0.25 ª 1.5 mm / 22 ª 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 0.75 mm / 22 ª 20 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 0.75 mm / 22 ª 20 AWG
- fire load:
- 0.134 MJ
- height:
- 16 mm / 0.63 inch
- housing sheet thickness:
- 0.5 ª 2 mm / 0.02 ª 0.079 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- 1 2 3
- mating force of a plug in connection:
- Approx. 20 ª 70 N (depending on pole number)
- mismating protection:
- Yes
- mounting type:
- Snap-in
- nominal cross section:
- 1.5 mm
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures «± 105 C
- note on mismating protection:
- All WINSTA« components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- note on rated current 1:
- 13 A for 3-pole load
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 3
- processing temperature:
- -5 ª +40 C
- protection class:
- IP20: IP40 when mated
- rated current:
- 16 A
- rated current ul 1977:
- 14 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.25 ª 1.5 mm / 22 ª 16 AWG
- solid conductor push in termination:
- 0.75 ª 1.5 mm / 20 ª 16 AWG
- stranded conductor:
- 0.25 ª 1 mm / 22 ª 18 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 ª 70 N (depending on pole number)
- weight:
- 5.485 g
- width:
- 24.2 mm / 0.953 inch
