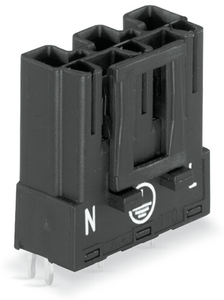

WAGO 890-813 Plug for PCBs straight 3-pole; black
Wago
$2.34
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 890-813 Plug for PCBs straight 3-pole; black
Plug for PCBs; straight; 3-pole; Cod. A; black.
The WAGO component equivalent to 890813 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various applications, including industrial automation, building technology, and process control, offering high performance and durability. It is known for its ease of installation and compatibility with other WAGO products, making it a versatile choice for professionals in the field.
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Male connector/plug
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- PL
- depth:
- 12.2 mm / 0.48 inch
- design:
- Straight
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fire load:
- 0.065 MJ
- height:
- 31.9 mm / 1.256 inch
- height from the surface:
- 28.4 mm / 1.118 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- L N
- mating direction to the pcb:
- 90
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 3
- processing temperature:
- -5 +40 C
- rated current:
- 16 A
- rated current ul 1977:
- 14 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solder pin arrangement:
- 2 in-line solder pins/pole
- solder pin dimensions:
- 1 x 0.8 mm
- solder pin length:
- 3.5 mm
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 3.200 g
- width:
- 14.8 mm / 0.583 inch
