Description
- Width only 96mm
- Efficiency up to 95,5%
- Good output regulation of a wide input voltage range
- 25% Power reserves available up to 15s
- Full output power between -25 and +60°C
- Excellent power factor, negligibly low inrush current
| Output | 24Vdc |
| 40A | |
| 960W | |
| Input | AC 400V (± 15%) |
| Size (WxHxD) | 96 x 124 x 159mm |
| Weight | 1400g |

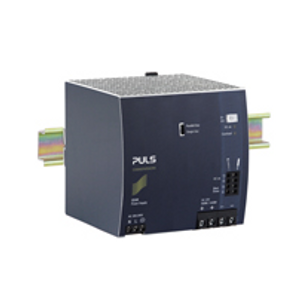

The DIMENSION X-series power supplies include a new and innovative concept for generating an isolated DC voltage from a three-phase mains system. A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time. Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25 % power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail. Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required. Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
