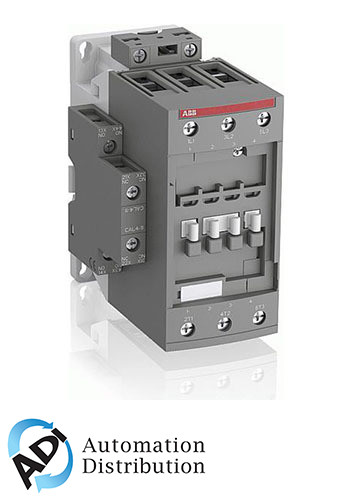

ABB AF52-30-11-12 Contactor, 3-Pole, 54A, 48-130V AC/DC with Built-in Surge Protection and Auxiliary Contacts
ABB
$204.38
The ABB AF52-30-11-12 contactor is a versatile and robust solution for controlling power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This contactor features an innovative electronic coil interface that accommodates a wide range of control voltages, from 24 to 500 V AC/DC, allowing for global compatibility without the need for coil changes. The AF52-30-11-12 is equipped with built-in surge protection, eliminating the need for additional suppressors and ensuring reliable performance even in unstable networks. Its block type design includes 3 main poles and a side-mounted auxiliary contact block with 1 N.O. and 1 N.C. contacts, compliant with IEC standards for mechanically linked and mirror contacts. The contactor supports both AC and DC operation and can be easily expanded with a variety of accessories to suit specific application needs. With the ability to control motors up to 22 kW at 400 V AC or 40 hp at 480 V UL, and switch power circuits up to 100 A (AC-1) or 80 A UL general use, the AF52-30-11-12 offers a compact and efficient solution for diverse industrial applications.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 48 ... 130 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
